Volvo
L150F
- Operating Weight
- 52,062 lb
- Bucket Capacity - heaped
- 5.30 yd³
- Gross Power
- 281.7 hp
- Net Power
- 280.3 hp
1 / 5

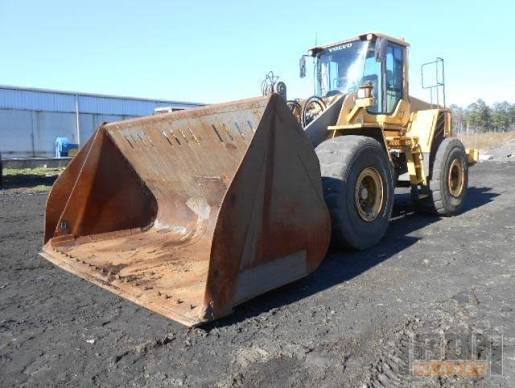

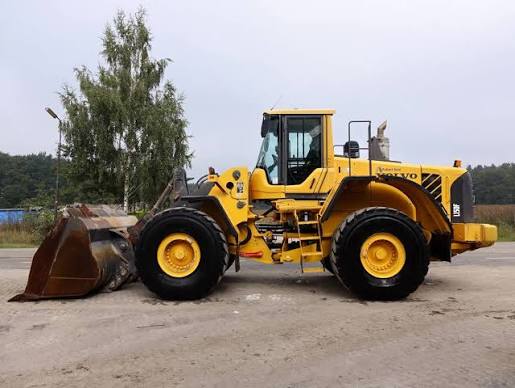

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 52,062 lb |
|---|---|
| Fuel Capacity | 88.5 gal |
| Tire Size | 26.5R25 L3 |
| Hydraulic System Fluid Capacity | 41.3 gal |
| Static Tipping Weight | 36,751 lb |
| Operating Voltage | 24 V |
| Turning Radius | 292 in |
| Engine Oil Fluid Capacity | 12.7 gal |
| Rear Axle Oscillation | 15 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 11.9 gal |
| Rear Axle/Diff Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 11.1 gal |
| Transmission Fluid Capacity | 11.9 gal |
| Rated Bucket Capacity | 4.09 – 15.70 yd³ |
Engine
| Engine Model | D120LDE3 |
|---|---|
| Displacement | 732 in³ |
| Power Measured @ | 1,550 rpm |
| Gross Power | 281.7 hp |
| Net Power | 280.3 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1,400 rpm |
| Make | Volvo |
Weights
| Operating Weight | 41,520 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 45.2 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.7 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,771 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 141 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 52 in |
| Length with Bucket on Ground | 342 in |
| Hinge Pin - Max Height | 172 in |
Transmission
| Max Speed - Forward | 22.5 mph |
|---|---|
| Max Speed - Reverse | 22.5 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 118 in |
| Bucket Width | 126 in |
