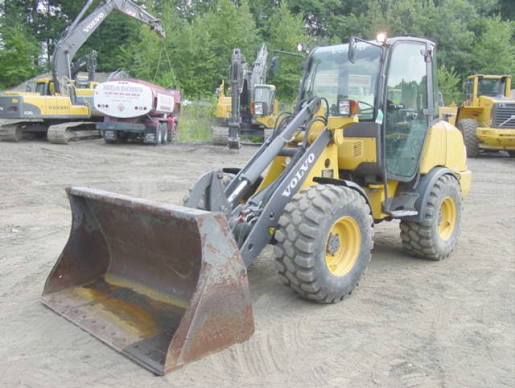

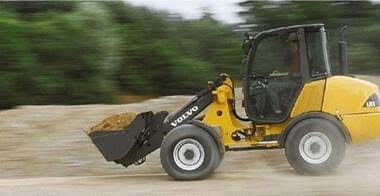

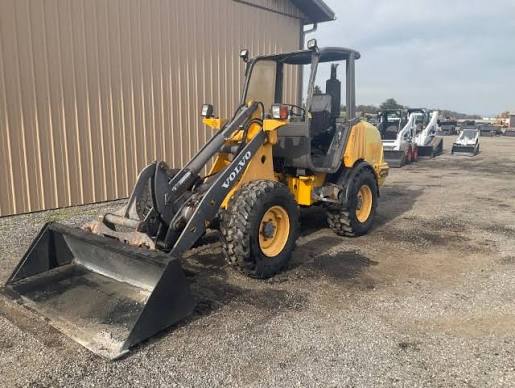

Volvo
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 9,546 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 12.0-18 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 7,055 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 1.1 gal |
| Rear Axle/Diff Fluid Capacity | 1.6 gal |
| Rated Bucket Capacity | 0.75 – 1.26 yd³ |
Engine
| Engine Model | D3DCAE2 |
|---|---|
| Displacement | 189 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 56.0 hp |
| Net Power | 54.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,700 rpm |
| Make | Volvo |
Weights
| Operating Weight | 9,945 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 13.8 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 4.0 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 2,901 psi |
| Pump Type | Gear-type pump |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 81 in |
| Width Over Tires | 69 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 200 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.90 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 6,857 lb |
| Bucket Width | 72 in |
