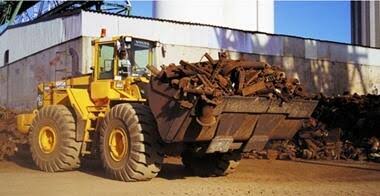

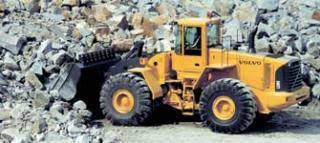

Volvo
L220D
- Operating Weight
- 67,924 lb
- Bucket Capacity - heaped
- 7.40 yd³
- Gross Power
- 352.0 hp
- Net Power
- 349.0 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 67,924 lb |
|---|---|
| Fuel Capacity | 87.5 gal |
| Tire Size | 29.5R25 L3 |
| Hydraulic System Fluid Capacity | 43.6 gal |
| Static Tipping Weight | 49,251 lb |
| Operating Voltage | 24 V |
| Turning Radius | 301 in |
| Engine Oil Fluid Capacity | 13.8 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 20.4 gal |
| Rear Axle/Diff Fluid Capacity | 18.8 gal |
| Cooling System Fluid Capacity | 22.0 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | TD 122 KLE |
|---|---|
| Displacement | 732 in³ |
| Power Measured @ | 1,600 rpm |
| Gross Power | 352.0 hp |
| Net Power | 349.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1,450 rpm |
Hydraulic System
| Pump Flow Capacity | 59.5 gal/min |
|---|---|
| Raise Time | 6.4 s |
| Lower Time | 3.2 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,626 psi |
| Pump Type | two load-sensing axial piston pumps |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 144 in |
| Wheelbase | 141 in |
| Width Over Tires | 126 in |
| Reach at Max Lift and Dump | 52 in |
| Length with Bucket on Ground | 346 in |
| Hinge Pin - Max Height | 185 in |
Transmission
| Max Speed - Forward | 21.3 mph |
|---|---|
| Max Speed - Reverse | 21.3 mph |
| Transmission Type | Volvo HTE 300 countershaft-type |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 128 in |
| Breakout Force | 49,480 lb |
| Bucket Width | 134 in |
