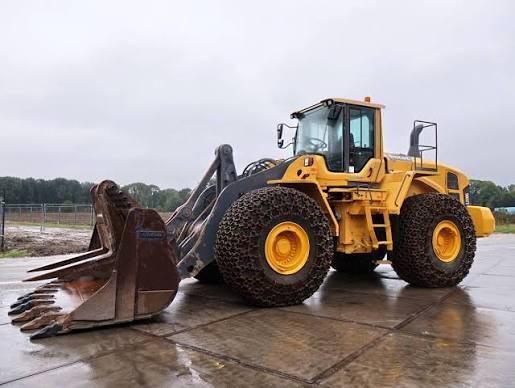

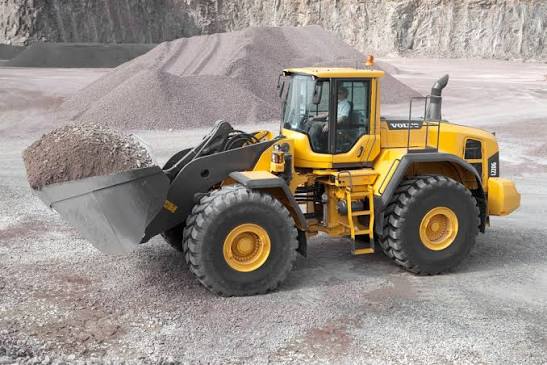

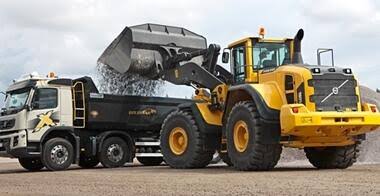

Volvo
L220G
- Operating Weight
- 69,556 lb
- Bucket Capacity - heaped
- 6.40 yd³
- Gross Power
- 367.0 hp
- Net Power
- 366.0 hp
.jpg)
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 69,556 lb |
|---|---|
| Fuel Capacity | 88.5 gal |
| Tire Size | 29.5 R25 L4 |
| Hydraulic System Fluid Capacity | 59.8 gal |
| Static Tipping Weight | 52,161 lb |
| Operating Voltage | 24 V |
| Turning Radius | 308 in |
| Engine Oil Fluid Capacity | 13.3 gal |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 20.4 gal |
| Rear Axle/Diff Fluid Capacity | 18.8 gal |
| Cooling System Fluid Capacity | 12.2 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | D13H-E |
|---|---|
| Displacement | 781 in³ |
| Power Measured @ | 1,300 rpm |
| Gross Power | 367.0 hp |
| Net Power | 366.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,100 rpm |
Hydraulic System
| Pump Flow Capacity | 53.4 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.2 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 4,496 psi |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 148 in |
| Wheelbase | 146 in |
| Width Over Tires | 126 in |
| Reach at Max Lift and Dump | 56 in |
| Length with Bucket on Ground | 366 in |
| Hinge Pin - Max Height | 185 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 23.6 mph |
| Transmission Type | Volvo HTL 306 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 6.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 125 in |
| Bucket Width | 135 in |
