Volvo

L60G

Wheel Loader

Operating Weight
26,020 lb
Gross Power
154.0 hp
Net Power
153.0 hp
All wheel loaders

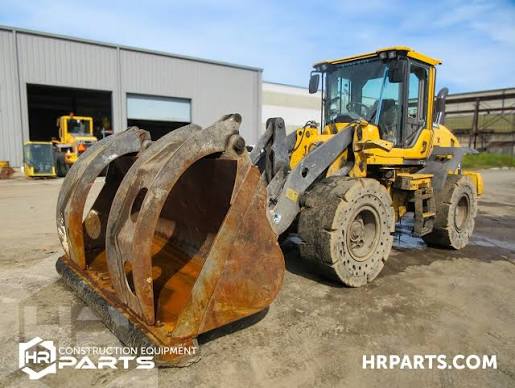

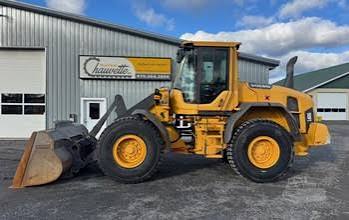

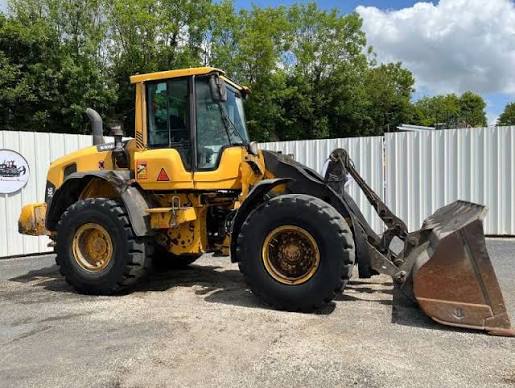

Volvo L60G Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,020 lb
Fuel Capacity59.2 gal
Tire Size20.5
Hydraulic System Fluid Capacity23.8 gal
Operating Voltage24 V
Turning Radius210 in
Engine Oil Fluid Capacity5.3 gal
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity6.3 gal
Rear Axle/Diff Fluid Capacity6.3 gal
Cooling System Fluid Capacity7.9 gal
Transmission Fluid Capacity5.3 gal
Rated Bucket Capacity2.20 – 6.50 yd³

Engine

Engine specifications
Engine ModelD6E LCE3
Displacement348 in³
Power Measured @1,700 rpm
Gross Power154.0 hp
Net Power153.0 hp
Number of Cylinders6
AspirationTURBOCHARGED
Torque Measured @1,600 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight26,550 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity38.0 gal/min
Raise Time4.5 s
Lower Time2.6 s
Dump Time2.9 s
Relief Valve Setting3,770 psi

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab127 in
Wheelbase118 in
Width Over Tires96 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground288 in
Hinge Pin - Max Height152 in

Transmission

Transmission specifications
Max Speed - Forward26.8 mph
Max Speed - Reverse26.8 mph
Transmission TypeVOLVO HTE 110
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Dump Clearance at Max Raise111 in
