Volvo

L70D

Wheel Loader

Operating Weight
24,980 lb
Bucket Capacity - heaped
2.50 yd³
Gross Power
128.0 hp
Net Power
122.0 hp
All wheel loaders

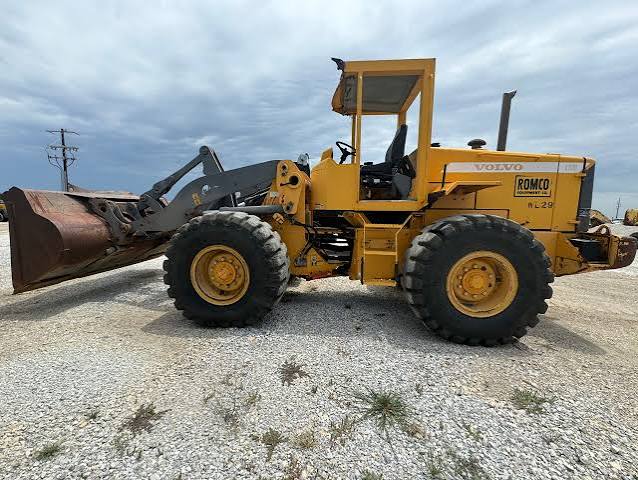

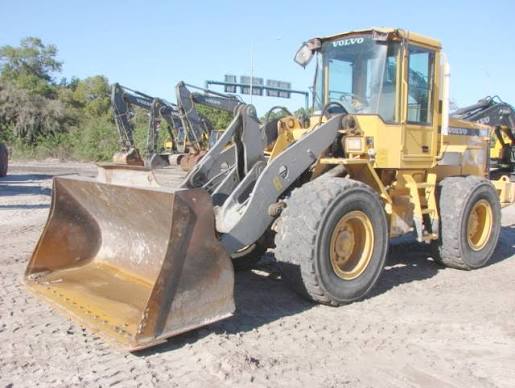

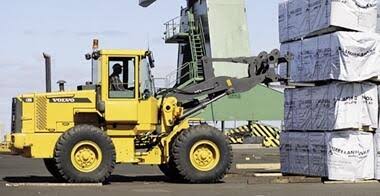

Volvo L70D Wheel Loader
1 / 5
Image 1 of 5
Image: psauction.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,980 lb
Fuel Capacity50.2 gal
Tire Size20.5R25*L2
Hydraulic System Fluid Capacity17.2 gal
Static Tipping Weight19,250 lb
Operating Voltage24 V
Turning Radius220 in
Engine Oil Fluid Capacity4.3 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity6.4 gal
Rear Axle/Diff Fluid Capacity6.4 gal
Cooling System Fluid Capacity10.6 gal
Transmission Fluid Capacity4.5 gal

Engine

Engine specifications
Engine ModelTD 63 KGE
Displacement334 in³
Power Measured @2,200 rpm
Gross Power128.0 hp
Net Power122.0 hp
Number of Cylinders6
AspirationTurbocharged with Intercooler
Torque Measured @1,100 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Raise Time5.4 s
Lower Time3.0 s
Dump Time1.1 s
Relief Valve Setting3,771 psi
Pump Typedouble axial piston pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab127 in
Wheelbase113 in
Width Over Tires95 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground281 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward27.3 mph
Max Speed - Reverse27.3 mph
Transmission TypeVolvo HT 90 countershaft-type
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.50 yd³
Dump Clearance at Max Raise114 in
Breakout Force19,540 lb
Bucket Width100 in
