Wacker Neuson

38Z3

Mini Excavator

Operating Weight
7,716 lb
Max Digging Depth
124 in
Net Power
36.8 hp
All mini excavators

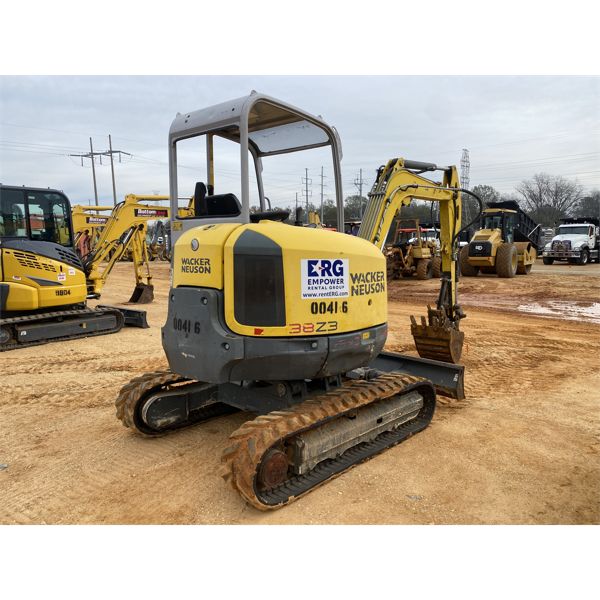

Wacker Neuson 38Z3 Mini Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,716 lb
Hydraulic Pump Flow Capacity32.0 gal/min
Hydraulic System Fluid Capacity10.2 gal
Hydraulic System Relief Valve Pressure3,481 psi
Operating Voltage12 V

Engine

Engine specifications
Engine Model3TNV86
Net Power36.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Tail Swing Radius43 in
Width to Outside of Tracks70 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth124 in
Max Reach Along Ground209 in
Max Vertical Wall Digging Depth96 in
Max Loading Height127 in
Shipping Length of Unit190 in
Max Cutting Height179 in
Shipping Height of Unit100 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth133 in
Max Cutting Height183 in
Max Loading Height132 in
Max Vertical Wall Digging Depth106 in
Max Reach Along Ground215 in
Shipping Height of Unit100 in
Shipping Length of Unit190 in
