Wacker Neuson

803 DUAL POWER

Mini Excavator

Operating Weight
2,542 lb
Max Digging Depth
70 in
Net Power
15.5 hp
All mini excavators

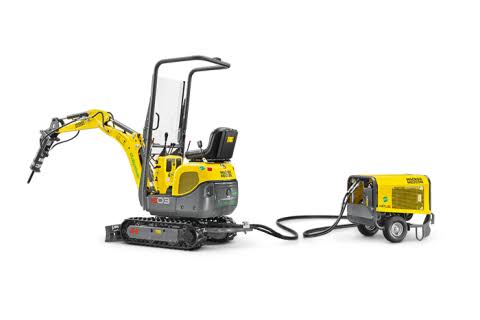

Wacker Neuson 803 DUAL POWER Mini Excavator
1 / 5
Image 1 of 5
Image: cougarsalesrental.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,542 lb
Fuel Capacity1.8 gal
Hydraulic Pump Flow Capacity5.3 gal/min
Hydraulic System Fluid Capacity3.7 gal
Hydraulic System Relief Valve Pressure2,466 psi

Engine

Engine specifications
Engine Model3TNV74F
Displacement61 in³
Power Measured @2,500 rpm
Net Power15.5 hp
Number of Cylinders3
AspirationLiquid-cooled
Engine MakeYanmar

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab56 in
Length of Track on Ground111 in
Tail Swing Radius30 in
Width to Outside of Tracks35 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.1 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth70 in
Max Reach Along Ground120 in
Max Vertical Wall Digging Depth53 in
Max Loading Height79 in
Shipping Length of Unit111 in
Max Cutting Height113 in
Shipping Height of Unit56 in

General Specifications

General Specifications specifications
Operating Weight lbs (kg)2,396 (1,086) — Starting 2025 Model Year
Digging Depth ft (m)5.8 (1.77) — Starting 2025 Model Year
Engine hp (kW)15.4 (11.6) — Starting 2025 Model Year
Digging Reach ft. (m)10.1 (3.08) — Starting 2025 Model Year
