Wacker Neuson

EZ28

Mini Excavator

Operating Weight
7,456 lb
Max Digging Depth
101 in
Net Power
21.2 hp
All mini excavators

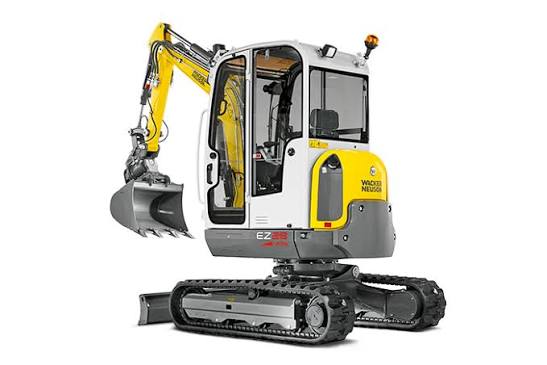

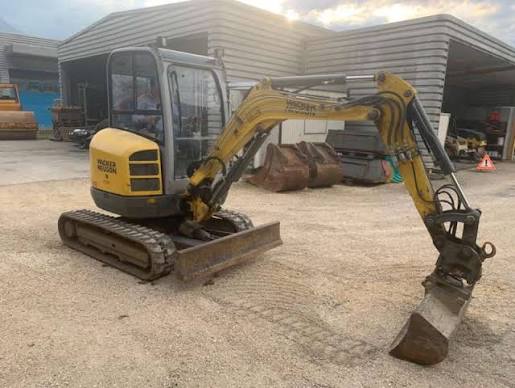

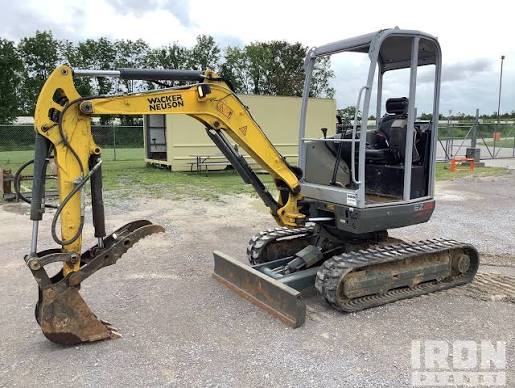

Wacker Neuson EZ28 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,456 lb
Fuel Capacity9.3 gal
Hydraulic Pump Flow Capacity23.6 gal/min
Hydraulic System Fluid Capacity7.0 gal
Hydraulic System Relief Valve Pressure3,263 psi

Engine

Engine specifications
Engine Model3TNV80F
Displacement77 in³
Power Measured @2,500 rpm
Net Power21.2 hp
Number of Cylinders3
AspirationWater-cooled
Engine MakeYanmar

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab95 in
Length of Track on Ground168 in
Tail Swing Radius30 in
Width to Outside of Tracks39 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.4 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth101 in
Max Reach Along Ground176 in
Max Vertical Wall Digging Depth85 in
Max Loading Height113 in
Shipping Length of Unit168 in
Max Cutting Height165 in
Shipping Height of Unit95 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth108 in
Max Cutting Height170 in
Max Loading Height118 in
Max Vertical Wall Digging Depth78 in
Max Reach Along Ground185 in
Shipping Height of Unit95 in
Shipping Length of Unit169 in
