Wacker Neuson

WL34

Wheel Loader

Bucket Capacity - heaped
0.80 yd³
Gross Power
48.0 hp
All wheel loaders

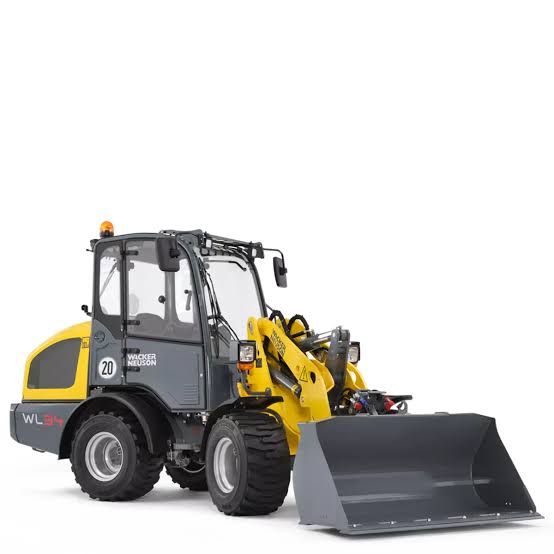

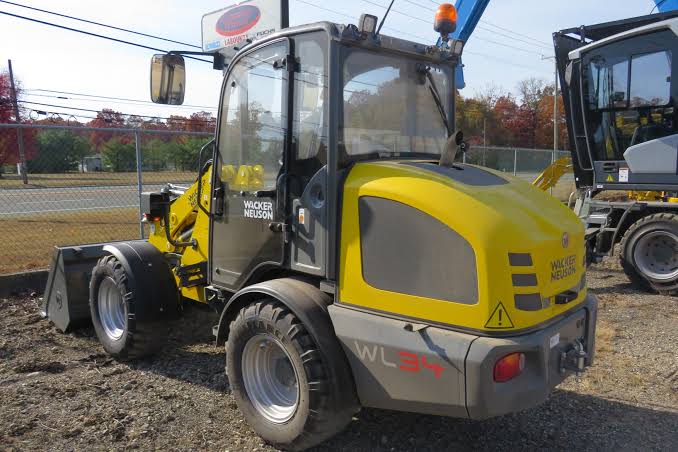

Wacker Neuson WL34 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Max Speed12.4 mph
Tire Size31x15.5-15EM ET-37
Operating Voltage12 V

Engine

Engine specifications
Engine Model404F-22
Displacement135 in³
Power Measured @2,600 rpm
Gross Power48.0 hp
Number of Cylinders4
Engine MakePerkins
Alternator77 A

Weights

Weights specifications
Operating Weight7,209 lb
Breakout force maximum9,952 lb-ft
Lifting force maximum8,331 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity13.0 gal/min
Relief Valve Pressure3,046 psi

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab93 in
Wheelbase80 in
Overall Length196 in
Width Over Tires62 in
Length with Bucket on Ground163 in
Track Width50 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank14.6 gal
Hydraulic system19.9 gal
Engine Oil2.2 gal
Hydraulic oil tank17.2 gal

Bucket

Bucket specifications
Bucket Capacity - heaped0.80 yd³

General Specifications

General Specifications specifications
Operating Weight8,598 (3,900) — Starting 2024 Model Year
Operating Weight lbs (kg)8,598 (3,900) — Starting 2025 Model Year
Bucket Capacity0.75(.57) — Starting 2024 Model Year
Bucket Capacity cu. yd. (cu m)0.75(.57) — Starting 2025 Model Year
Engine typeDeutz TD 2.9 L4 S5 — Starting 2024 Model Year
Engine Power60 (45) — Starting 2024 Model Year
Max Dump Height8.0 (2.44) — Starting 2024 Model Year
Max Dump Height ft.( m)8.0 (2.44) — Starting 2025 Model Year
OperatingWeight lbs. (kg)8,598 (3,900) — Starting 2026 Model Year
Engine Power Gross hp (kW)60 (45) — Starting 2025 Model Year
