JCB
JS240L
Excavator
13 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 45,415 lb |
|---|---|
| Hydraulic Pump Flow Capacity | 111.0 gal/min |
| Hydraulic System Relief Valve Pressure | 4,641 psi |
Engine
| Engine Model | BB-6BG1T |
|---|---|
| Displacement | 397 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 161.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Length of Track on Ground | 144 in |
| Tail Swing Radius | 114 in |
| Width to Outside of Tracks | 118 in |
Undercarriage
| Max Travel Speed | 3.3 mph |
|---|---|
| Shoe Size | 24 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 260 in |
|---|---|
| Max Reach Along Ground | 385 in |
| Max Loading Height | 271 in |
| Shipping Length of Unit | 379 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|

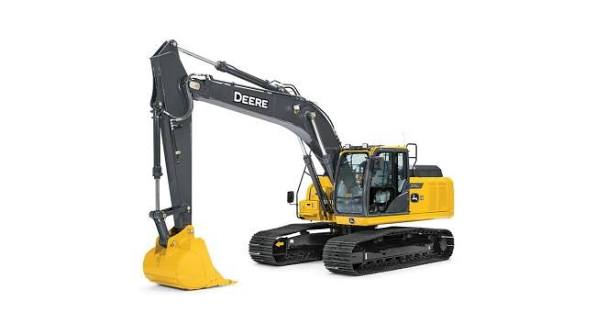

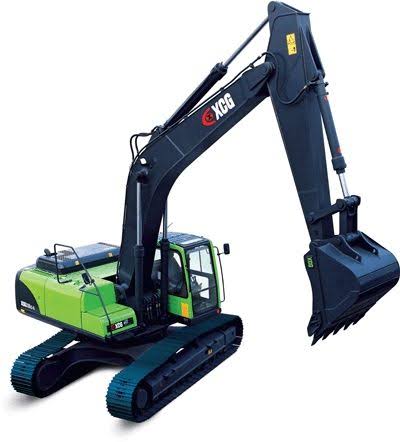

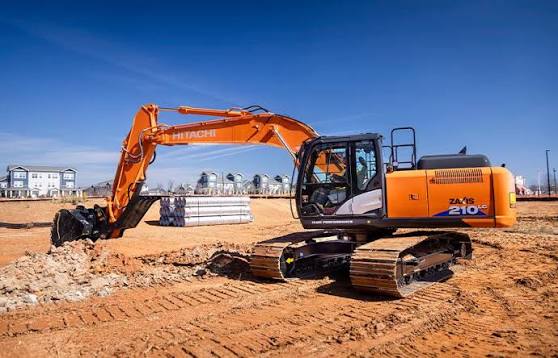

Comparable machines
