XCMG

XCT50E

Truck Crane

Operating Weight
93,675 lb
Max Lift Capacity
100,000 lb
Max Speed - Forward
49.8 mph
All truck cranes

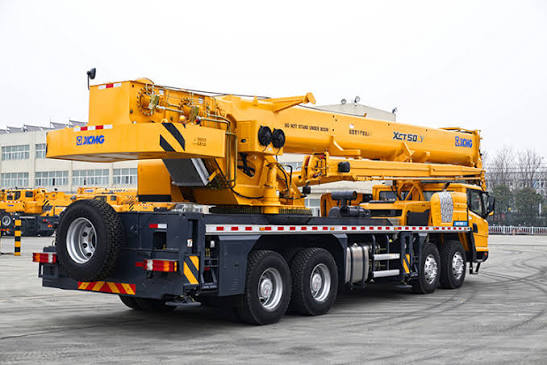

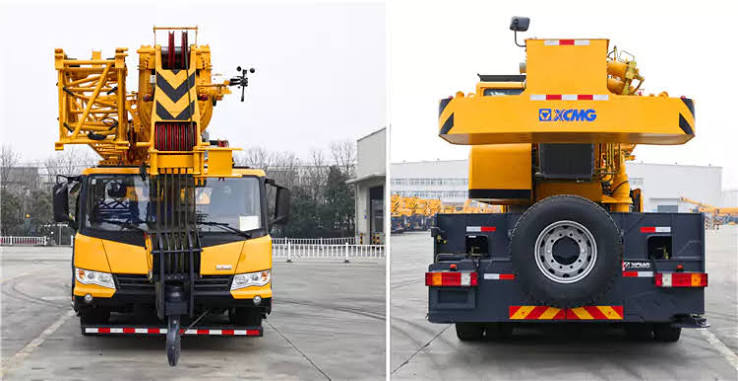

XCMG XCT50E Truck Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight93,675 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width110 in
Transport Height145 in
Transport Length544 in
Gradeability40.0 %
Angle of departure15 °
Approach Angle21 °

Transmission

Transmission specifications
Max Speed - Forward49.8 mph

Boom

Boom specifications
Max Lift Capacity100,000 lb
Max Height @ Max Raise Angle - no jib1,705 in
Min Height @ Max Raise Angle450 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power331.3 hp
Power Measured @2,200 rpm
Max Torque996 lb-ft
Torque Measured @1,400 rpm
