XCMG

XCT70E

Truck Crane

Operating Weight
98,084 lb
Max Lift Capacity
140,000 lb
Max Speed - Forward
49.8 mph
All truck cranes

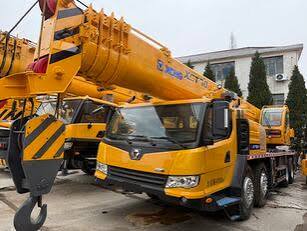

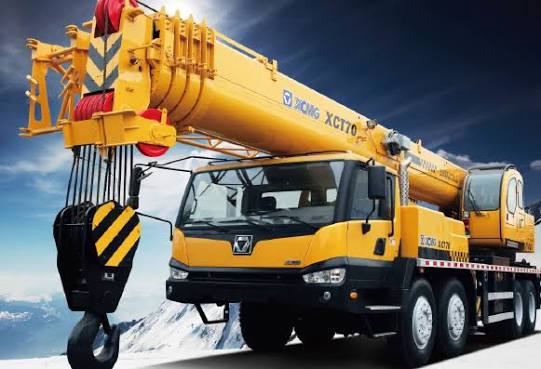

XCMG XCT70E Truck Crane
1 / 5
Image 1 of 5
Image: dir.indiamart.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Operating Weight98,084 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width110 in
Transport Height145 in
Transport Length558 in
Upper Structure Tail Swing Radius152 in
Gradeability40.0 %
Angle of departure14 °
Approach Angle21 °

Transmission

Transmission specifications
Max Speed - Forward49.8 mph

Boom

Boom specifications
Max Lift Capacity140,000 lb
Max Height @ Max Raise Angle - no jib1,772 in
Min Height @ Max Raise Angle466 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power370.2 hp
Power Measured @2,200 rpm
