Yanmar

VIO20-3

Mini Excavator

Operating Weight
4,916 lb
Max Digging Depth
97 in
Net Power
19.2 hp
All mini excavators

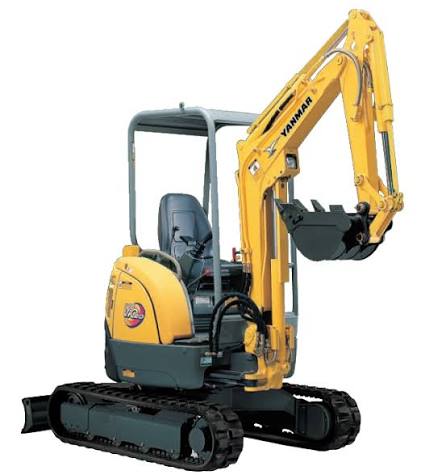

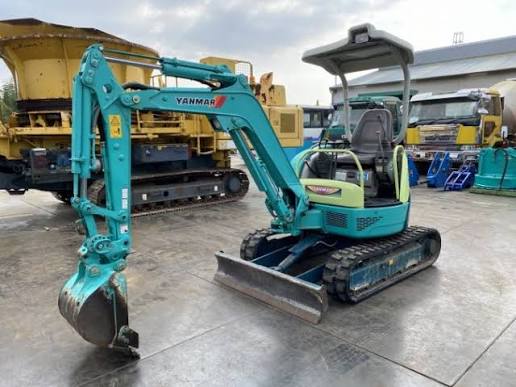

Yanmar VIO20-3 Mini Excavator
1 / 5
Image 1 of 5
Image: hmequipment.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,916 lb
Hydraulic Pump Flow Capacity20.1 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV76PBV
Displacement61 in³
Power Measured @2,400 rpm
Net Power19.2 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Length of Track on Ground76 in
Tail Swing Radius28 in
Width to Outside of Tracks55 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth97 in
Max Reach Along Ground165 in
Max Vertical Wall Digging Depth76 in
Max Loading Height97 in
Shipping Length of Unit155 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
