Yanmar

ViO25-6A

Mini Excavator

Operating Weight
5,919 lb
Max Digging Depth
125 in
Net Power
20.4 hp
All mini excavators

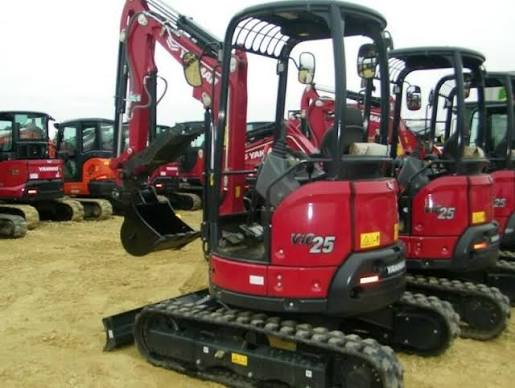

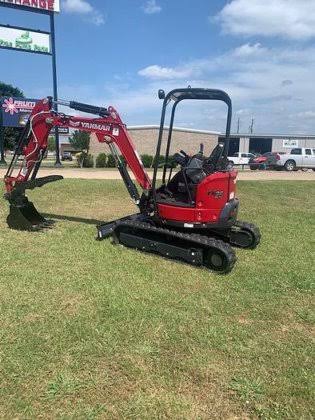

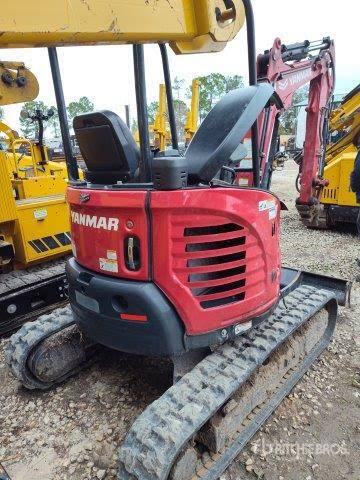

Yanmar ViO25-6A Mini Excavator
1 / 5
Image 1 of 5
Image: hmequipment.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,919 lb
Fuel Capacity8.1 gal
Hydraulic Pump Flow Capacity7.9 gal/min

Engine

Engine specifications
Engine Model3TNV80F-SXNBV
Power Measured @2,500 rpm
Net Power20.4 hp
Engine MakeYANMAR

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab98 in
Tail Swing Radius30 in
Width to Outside of Tracks60 in

Undercarriage

Undercarriage specifications
Ground Pressure2,987 psi
Max Travel Speed2.8 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth125 in
Max Reach Along Ground193 in
Boom Swing - Left47 °
Boom Swing - Right74 °

Bucket

Bucket specifications
Bucket digging Force - SAE4,079 lb
Arm digging Force5,203 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
