Yanmar

VIO27-5

Mini Excavator

Operating Weight
7,231 lb
Max Digging Depth
109 in
Net Power
21.6 hp
All mini excavators

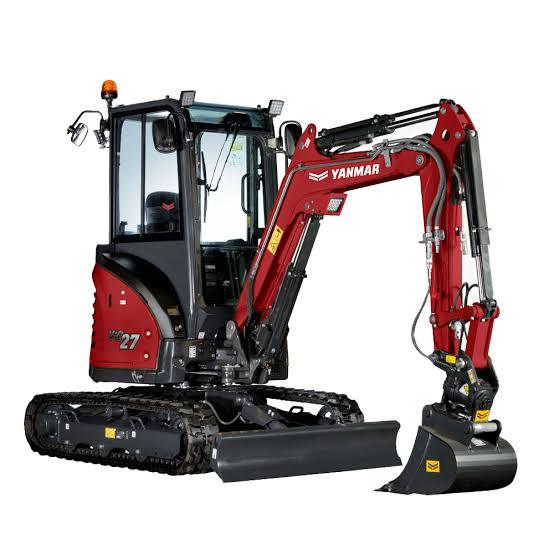

Yanmar VIO27-5 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,231 lb
Hydraulic Pump Flow Capacity18.1 gal/min
Hydraulic System Relief Valve Pressure2,988 psi

Engine

Engine specifications
Engine Model3TNV82A-SBV
Displacement81 in³
Power Measured @2,200 rpm
Net Power21.6 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance13 in
Length of Track on Ground79 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.0 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth109 in
Max Reach Along Ground181 in
Max Vertical Wall Digging Depth94 in
Max Loading Height115 in
Shipping Length of Unit163 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
