Yanmar

VIO35-6A

Mini Excavator

Operating Weight
7,905 lb
Max Digging Depth
135 in
Net Power
24.4 hp
All mini excavators

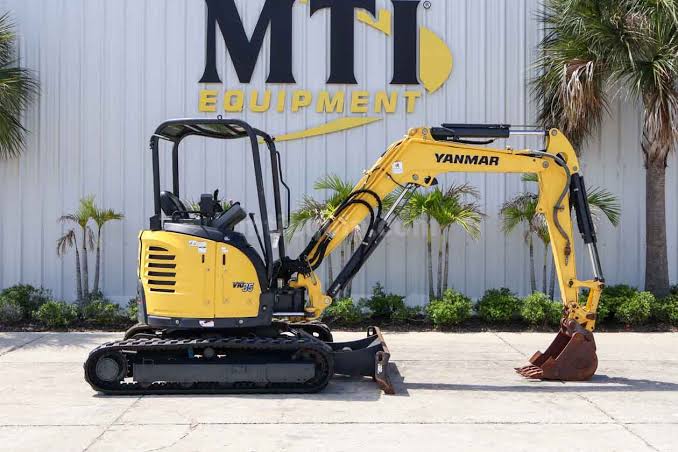

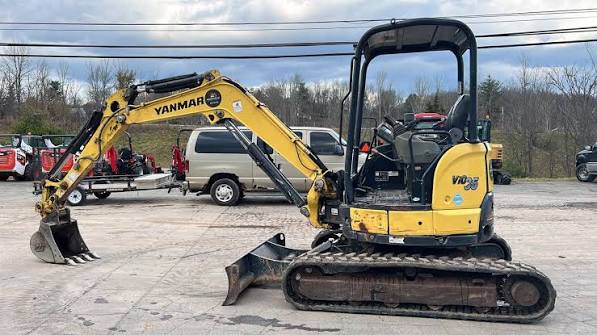

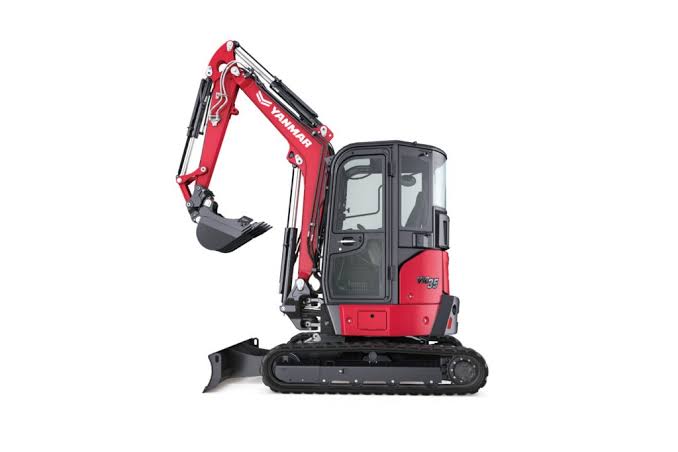

Yanmar VIO35-6A Mini Excavator
1 / 5
Image 1 of 5
Image: yanmarce.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,905 lb
Fuel Capacity10.9 gal
Hydraulic Pump Flow Capacity19.6 gal/min
Hydraulic System Relief Valve Pressure6,410 psi

Engine

Engine specifications
Engine Model3TNV88F-ESBV
Power Measured @2,200 rpm
Net Power24.4 hp
AspirationWater-cooled 4-cycle diesel

Weights

Weights specifications
Ground bearing pressure (rubber tracks)5 psi
Rubber Tracks7,905 lb
Steel tracks8,125 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab98 in
Wheelbase85 in
Width to Outside of Tracks70 in
Overall Height202 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.8 mph
Min Travel Speed1.7 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth135 in
Max Reach Along Ground212 in
Boom Swing - Left43 °
Boom Swing - Right65 °

Bucket

Bucket specifications
Bucket digging Force - SAE5,643 lb
Arm digging Force7,216 lb

General Specifications

General Specifications specifications
Operating Weight lbs (kg)8,214 (3,726) Starting 2025 Model Year
Digging Depth ft (m)11.3 (3.44) Starting 2025 Model Year
Engine hp (kW)24.4 (18.2) Starting 2025 Model Year
Max Reach @ ground level ft. (m)17.25 (5.26) Starting 2025 Model Year

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Blades

Blades specifications
Blade Width70 in
Blade Raise16 in
Blade Stroke17 in
