YTO

LGS1822B

Smooth Drum Roller

Max Speed
5.8 mph
Gross Power
134.2 hp
All smooth drum rollers

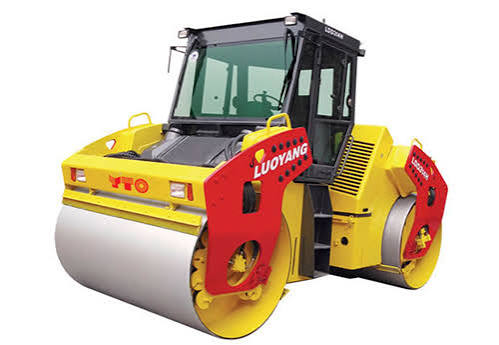

YTO LGS1822B Smooth Drum Roller
1 / 5
Image 1 of 5
Image: ltmgloader.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Max Speed5.8 mph

Engine

Engine specifications
Engine Model6BT5.9
Power Measured @2,000 rpm
Gross Power134.2 hp
Aspirationturbocharged

Weights

Weights specifications
Operating Weight - standard39,683 lb
Operating Weight - max ballast48,502 lb
Max Static Linear Load - Drive Drum521 lb-ft
Max Static Linear Load - guide drum631 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Wheelbase122 in
Overall Length20 in
Overall Width90 in
Height - Top of ROPS/FOPS126 in
Height94 in
Drum Diameter - Front72 in
Drum Diameter - Rear72 in
