Case
21D
Wheel Loader
43 specifications

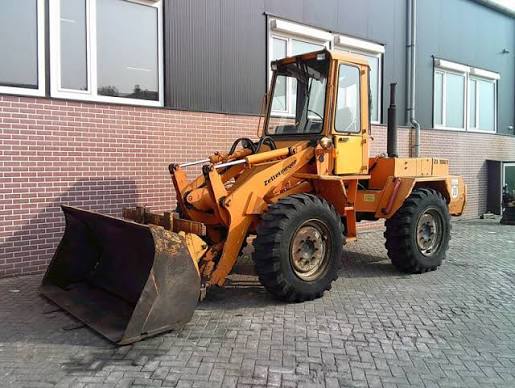

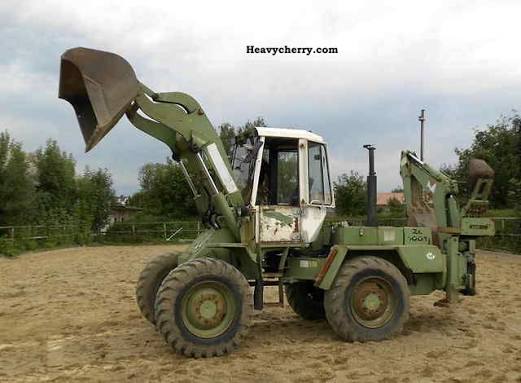

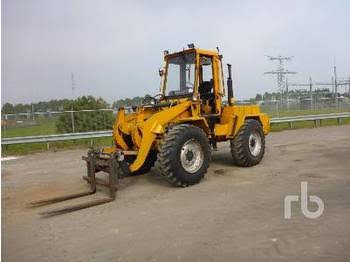

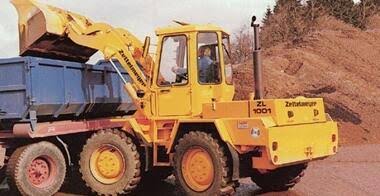

Zettelmeyer
ZL1001
- Operating Weight
- 16,358 lb
- Bucket Capacity - heaped
- 1.80 yd³
- Gross Power
- 84.0 hp
- Net Power
- 80.0 hp
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 16,358 lb |
|---|---|
| Fuel Capacity | 29.1 gal |
| Tire Size | 15.5-25 10PR (L-2) |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Static Tipping Weight | 13,779 lb |
| Operating Voltage | 12 V |
| Turning Radius | 193 in |
| Engine Oil Fluid Capacity | 3.1 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 3.6 gal |
| Rear Axle/Diff Fluid Capacity | 3.9 gal |
Engine
| Engine Model | F4L 913 |
|---|---|
| Displacement | 249 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 84.0 hp |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
| Torque Measured @ | 1,550 rpm |
Hydraulic System
| Pump Flow Capacity | 29.8 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,611 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 95 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 227 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 15.6 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | hydrostatic full powershift |
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Bucket Capacity - struck | 1.50 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 13,489 lb |
| Bucket Width | 89 in |
