Zettelmeyer
ZL1801
- Operating Weight
- 24,912 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Gross Power
- 134.2 hp
- Net Power
- 126.1 hp
1 / 5

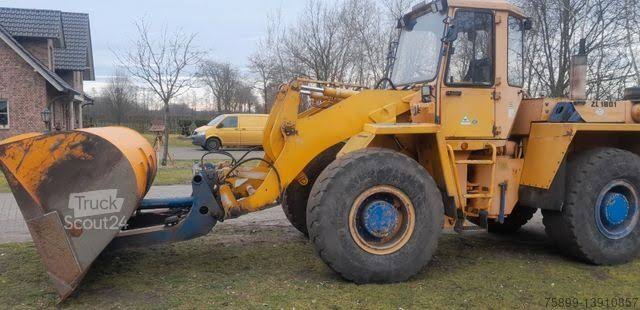

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 24,912 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Tire Size | 20-24 12PR |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Static Tipping Weight | 20,062 lb |
| Operating Voltage | 24 V |
| Turning Radius | 227 in |
| Engine Oil Fluid Capacity | 4.3 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 7.1 gal |
| Rear Axle/Diff Fluid Capacity | 5.5 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | 6BT 5.9 |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 134.2 hp |
| Net Power | 126.1 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 41.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 2.4 s |
| Relief Valve Setting | 3,336 psi |
| Pump Type | axial piston |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 124 in |
| Wheelbase | 114 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 264 in |
| Hinge Pin - Max Height | 148 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.70 yd³ |
| Dump Clearance at Max Raise | 115 in |
| Breakout Force | 26,303 lb |
| Bucket Width | 100 in |
