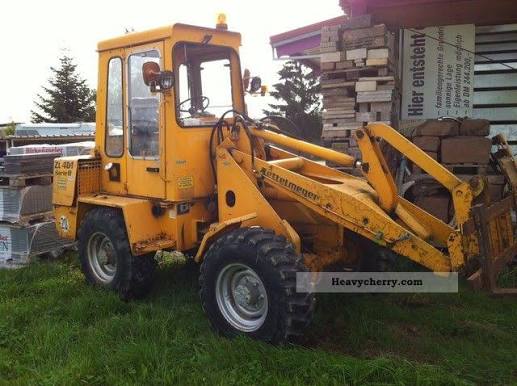

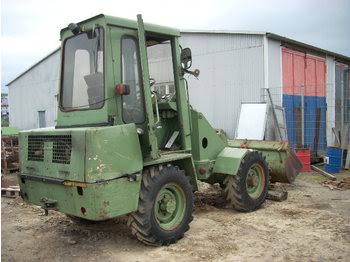

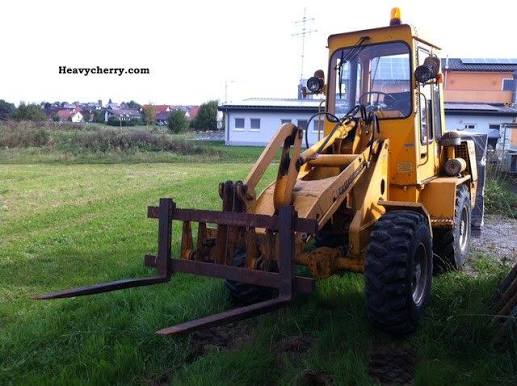

Zettelmeyer
ZL401MP
- Operating Weight
- 7,165 lb
- Bucket Capacity - heaped
- 0.71 yd³
- Gross Power
- 37.6 hp
- Net Power
- 34.9 hp
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 7,165 lb |
|---|---|
| Fuel Capacity | 11.9 gal |
| Tire Size | 10.5-18 119G |
| Hydraulic System Fluid Capacity | 11.9 gal |
| Operating Voltage | 12 V |
| Turning Radius | 145 in |
| Rear Axle Oscillation | 13 ° |
| Alternator Supplied Amperage | 65 A |
| Engine Oil Capacity | 1.0 gal |
| Static Tipping Load - Bucket | 5,357 lb |
| Front Diff Fluid Capacity | 1.5 gal |
| Rear Diff Fluid Capacity | 1.6 gal |
| Static Tipping Load - Forks | 3,483 lb |
Engine
| Engine Model | F2L511 |
|---|---|
| Displacement | 101 in³ |
| Gross Power | 37.6 hp |
| Net Power | 34.9 hp |
| Max Torque | 66 lb-ft |
Hydraulic System
| Raise Time | 6.0 s |
|---|---|
| Lower Time | 3.5 s |
| Dump Time | 2.5 s |
| Relief Valve Setting | 2,901 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 101 in |
| Wheelbase | 72 in |
| Dump Clearance at Max Lift | 93 in |
| Length w/ Bucket on Ground | 186 in |
| Reach at Max Height and Dump | 30 in |
| Max Lift Height | 111 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic full power shift |
Bucket
| Bucket Capacity - heaped | 0.71 yd³ |
|---|---|
| Bucket Capacity - struck | 0.60 yd³ |
| Breakout Force | 4,946 lb |
