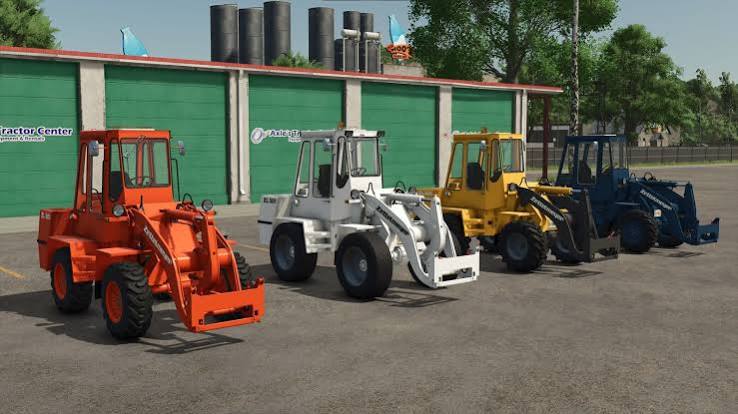

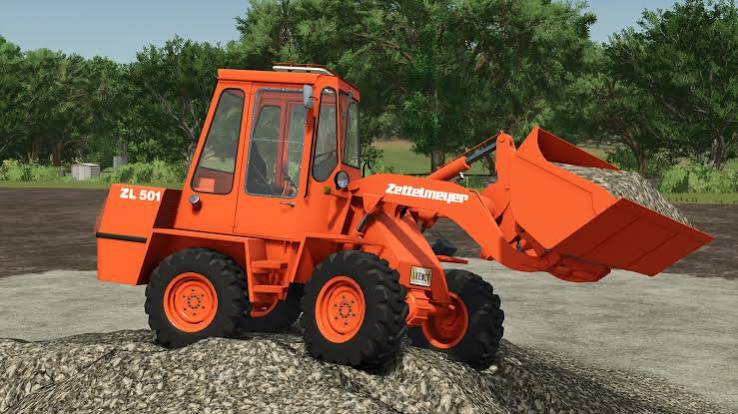

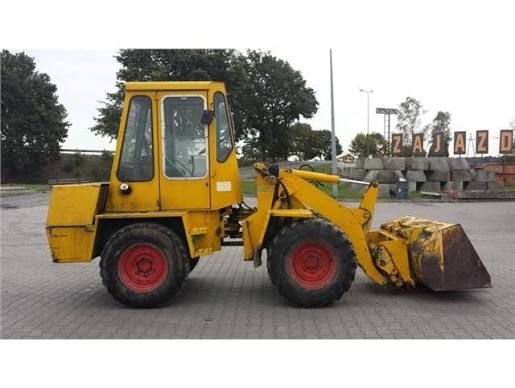

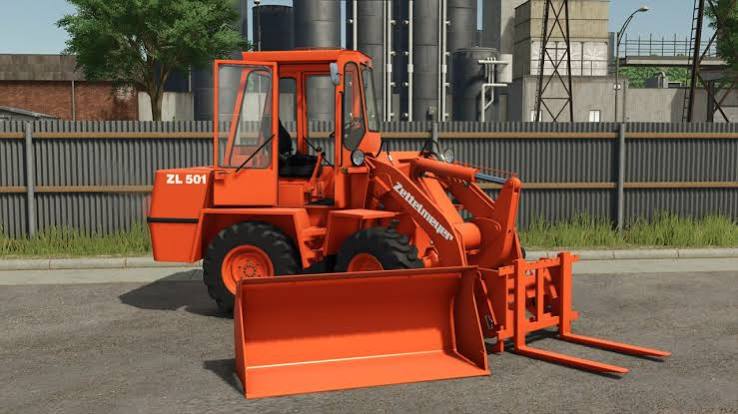

Zettelmeyer
ZL501
- Operating Weight
- 9,259 lb
- Bucket Capacity - heaped
- 1.80 yd³
- Gross Power
- 48.0 hp
- Net Power
- 48.0 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 9,259 lb |
|---|---|
| Tire Size | 12.5-18 |
| Static Tipping Weight | 6,945 lb |
| Operating Voltage | 12 V |
| Turning Radius | 170 in |
Engine
| Engine Model | F4L 1011 |
|---|---|
| Power Measured @ | 2,800 rpm |
| Gross Power | 48.0 hp |
| Net Power | 48.0 hp |
| Number of Cylinders | 2 |
| Torque Measured @ | 1,800 rpm |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 107 in |
| Wheelbase | 77 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 194 in |
| Hinge Pin - Max Height | 121 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Bucket Capacity - struck | 0.99 yd³ |
| Dump Clearance at Max Raise | 98 in |
| Breakout Force | 8,655 lb |
| Bucket Width | 70 in |
