Case
21D
Wheel Loader
43 specifications

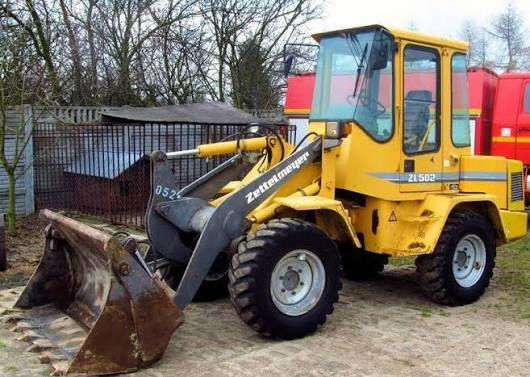

Zettelmeyer
ZL502B
- Operating Weight
- 9,250 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 48.3 hp
- Net Power
- 47.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 9,250 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 12.5-18 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 6,880 lb |
| Operating Voltage | 12 V |
| Turning Radius | 161 in |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 2.7 gal |
| Rear Axle/Diff Fluid Capacity | 3.0 gal |
Engine
| Engine Model | KHD F4L 1011 F |
|---|---|
| Displacement | 167 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 48.3 hp |
| Net Power | 47.0 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
| Torque Measured @ | 1,800 rpm |
Hydraulic System
| Pump Flow Capacity | 11.9 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,191 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 102 in |
| Wheelbase | 79 in |
| Width Over Tires | 69 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 197 in |
| Hinge Pin - Max Height | 122 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic full powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 8,655 lb |
| Bucket Width | 70 in |
