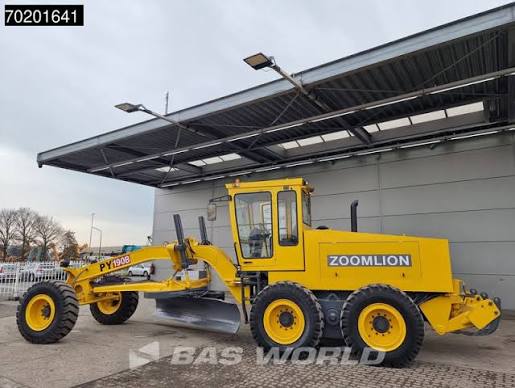

Zoomlion
Caterpillar
120G
Motor Grader
17 specifications
1 / 5
Image 1 of 5
Specifications
17 data points
Operating Specifications
| Std Operation Weight - Total | 33,951 lb |
|---|---|
| Fuel Capacity | 52.9 gal |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Circle Gearbox Fluid Capacity | 7.4 gal |
Engine
| Engine Model | QSB6.7-C193 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Max Power | 193.0 hp |
Dimensions
| Overall Length | 350 in |
|---|---|
| Width Over Tires | 103 in |
| Height to Top of Isomount Cab | 130 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
Moldboard
| Moldboard Height | 24 in |
|---|---|
| Moldboard Width | 157 in |
| Max Depth of Cut | 20 in |
Circle
| Max Lift Above Ground | 18 in |
|---|
Steering System
| Turning Radius | 307 in |
|---|
