Zoomlion

ZE230

Excavator

Operating Weight
49,825 lb
Max Digging Depth
260 in
Net Power
167.7 hp
All excavators

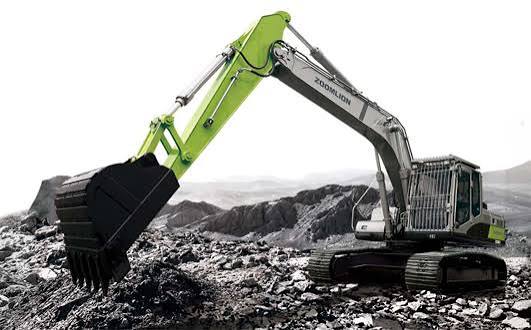

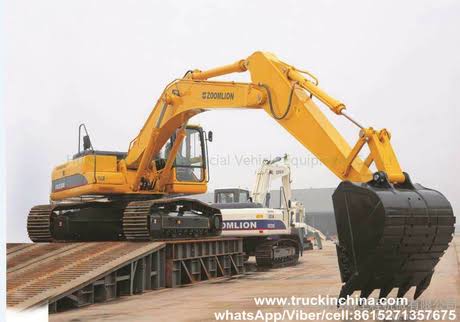

Zoomlion ZE230 Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,825 lb
Fuel Capacity84.6 gal
Hydraulic System Fluid Capacity43.6 gal
Engine Oil Capacity4.8 gal
Cooling System Fluid Capacity6.7 gal
Swing Drive Fluid Capacity0.9 gal

Engine

Engine specifications
Engine Model6BTA5.9-C167
Power Measured @2,000 rpm
Net Power167.7 hp
Torque Measured @1,500 rpm
Max Torque480 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground168 in
Tail Swing Radius115 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.8 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth260 in
Max Reach Along Ground396 in
Max Loading Height269 in
Max Cutting Height383 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
