Zoomlion

ZE230LC

Excavator

Operating Weight
49,825 lb
Max Digging Depth
448 in
Max Digging Depth
348 in
Net Power
167.7 hp
All excavators

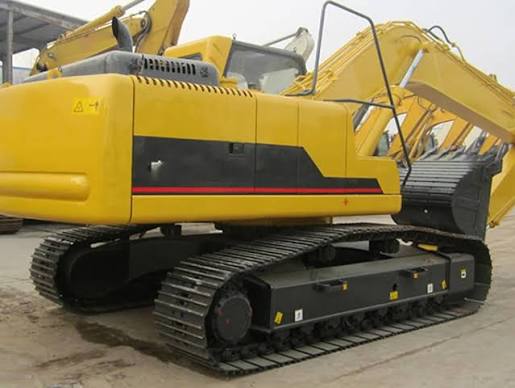

Zoomlion ZE230LC Excavator
1 / 5
Image 1 of 5
Image: m.cehome.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,825 lb
Fuel Capacity84.6 gal
Hydraulic System Fluid Capacity43.6 gal
Engine Oil Capacity4.8 gal
Cooling System Fluid Capacity6.7 gal
Swing Drive Fluid Capacity0.9 gal

Engine

Engine specifications

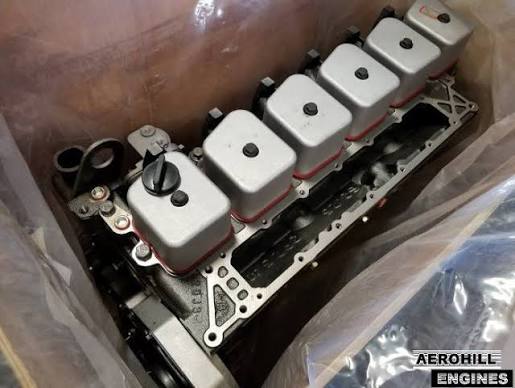

Engine Model6BTA5.9-C167
Power Measured @2,000 rpm
Net Power167.7 hp
Torque Measured @1,500 rpm

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab119 in
Length of Track on Ground178 in
Tail Swing Radius122 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed3.8 mph
Shoe Size32 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth448 in
Max Reach Along Ground604 in
Max Loading Height600 in
Max Cutting Height530 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth348 in
Max Cutting Height459 in
Max Loading Height493 in
Max Reach Along Ground499 in
