Bobcat

316

Mini Excavator

Operating Weight
1,676 lb
Max Digging Depth
61 in
Net Power
10.0 hp
All mini excavators

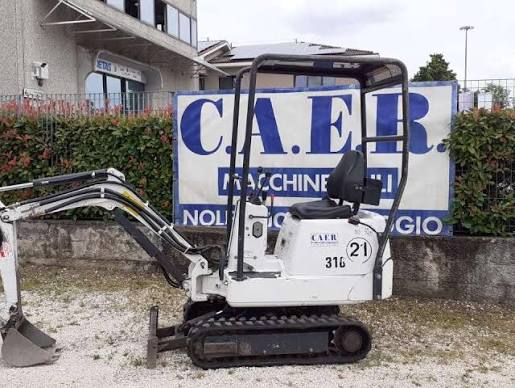

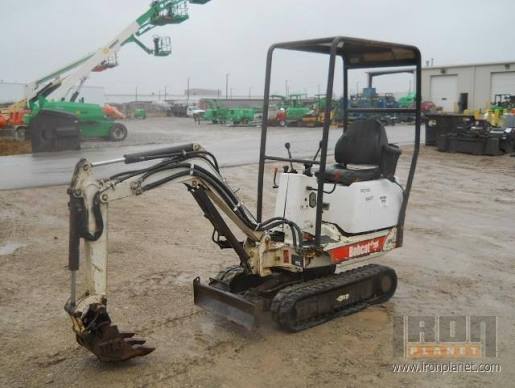

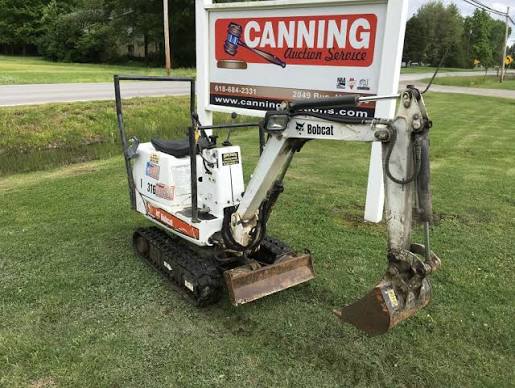

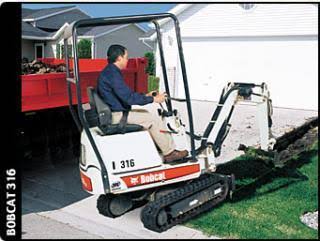

Bobcat 316 Mini Excavator
1 / 5
Image 1 of 5
Image: kwipped.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,676 lb
Fuel Capacity2.4 gal
Hydraulic Pump Flow Capacity5.4 gal/min
Hydraulic System Fluid Capacity3.5 gal
Cooling System Fluid Capacity1.1 gal

Engine

Engine specifications
Engine ModelD722-EB
Displacement44 in³
Power Measured @2,000 rpm
Net Power10.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab83 in
Length of Track on Ground39 in
Tail Swing Radius36 in
Width to Outside of Tracks28 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge22 in
Max Travel Speed1.3 mph
Shoe Size7 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth61 in
Max Reach Along Ground109 in
Max Vertical Wall Digging Depth46 in
Max Loading Height79 in
Shipping Length of Unit115 in
Max Cutting Height113 in
Shipping Height of Unit83 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
