PC03-2F
Mini Excavator
27 specifications
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 1,667 lb |
|---|---|
| Fuel Capacity | 2.1 gal |
| Hydraulic Pump Flow Capacity | 5.6 gal/min |
| Hydraulic System Fluid Capacity | 4.1 gal |
| Hydraulic System Relief Valve Pressure | 2,133 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 9 A |
| Engine Oil Capacity | 1.7 gal |
| Cooling System Fluid Capacity | 2.6 gal |
Engine
| Engine Model | 2TN66L |
|---|---|
| Displacement | 27 in³ |
| Power Measured @ | 2,550 rpm |
| Net Power | 8.0 hp |
| Number of Cylinders | 2 |
| Torque Measured @ | 2,100 rpm |
| Max Torque | 18 lb-ft |
Dimensions
| Ground Clearance | 7 in |
|---|---|
| Height - Top of Cab | 80 in |
| Length of Track on Ground | 36 in |
| Tail Swing Radius | 31 in |
| Width to Outside of Tracks | 30 in |
Undercarriage
| Ground Pressure | 3 psi |
|---|---|
| Number of Track Rollers per Side | 2 |
| Max Travel Speed | 2.3 mph |
| Shoe Size | 7 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 61 in |
|---|---|
| Max Reach Along Ground | 108 in |
| Max Vertical Wall Digging Depth | 49 in |
| Max Loading Height | 79 in |
| Shipping Length of Unit | 108 in |
| Max Cutting Height | 113 in |
| Shipping Height of Unit | 80 in |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|

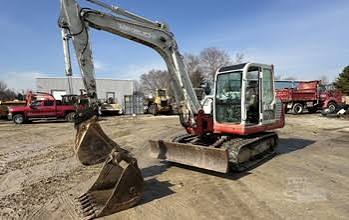

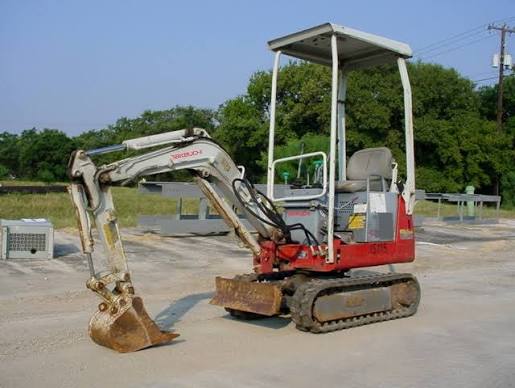

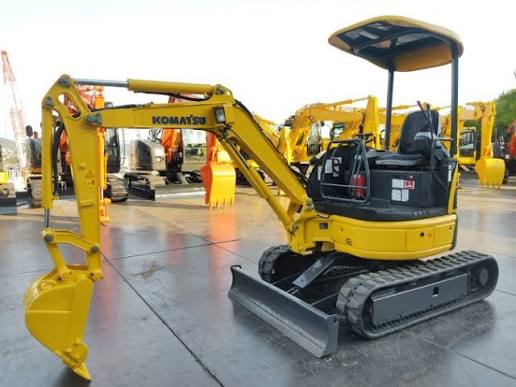

Comparable machines
