Komatsu

PC20MR-2

Mini Excavator

Operating Weight
2,295 lb
Max Digging Depth
94 in
Net Power
20.8 hp
All mini excavators

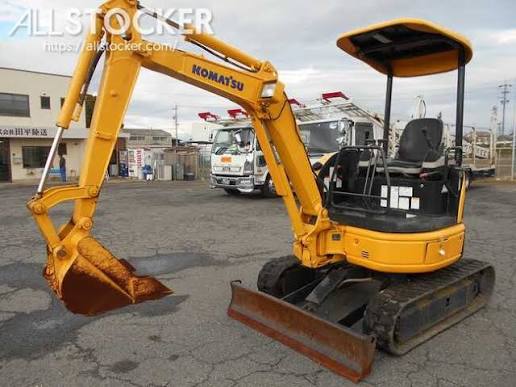

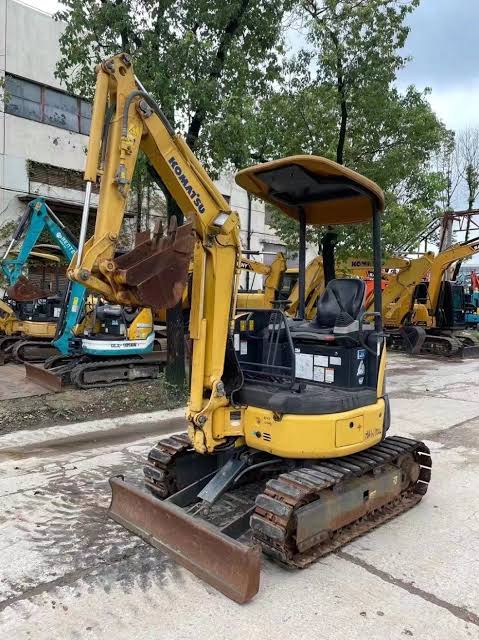

Komatsu PC20MR-2 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,295 lb
Fuel Capacity7.4 gal
Hydraulic System Fluid Capacity5.0 gal
Operating Voltage12 V
Engine Oil Capacity0.9 gal

Engine

Engine specifications
Engine Model3D76E-5
Displacement68 in³
Power Measured @1 rpm
Net Power20.8 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance109 in
Height - Top of Cab100 in
Length of Track on Ground74 in
Tail Swing Radius31 in
Width to Outside of Tracks48 in
Removal Counterweight Clearance161 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side3
Max Travel Speed2.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth94 in
Max Reach Along Ground165 in
Max Vertical Wall Digging Depth78 in
Max Loading Height111 in
Max Cutting Height162 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth108 in
Max Cutting Height174 in
Max Loading Height122 in
Max Vertical Wall Digging Depth94 in
Max Reach Along Ground182 in
