Bobcat

S650

Skid Steer Loader

Operating Weight
2,690 lb
Max Speed
7.1 mph
Gross Power
74.3 hp
All skid steer loaders

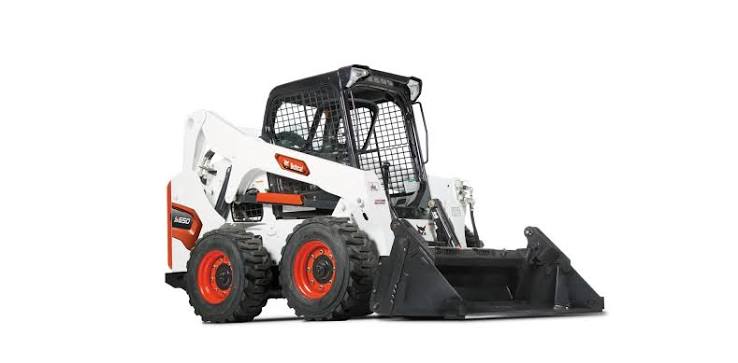

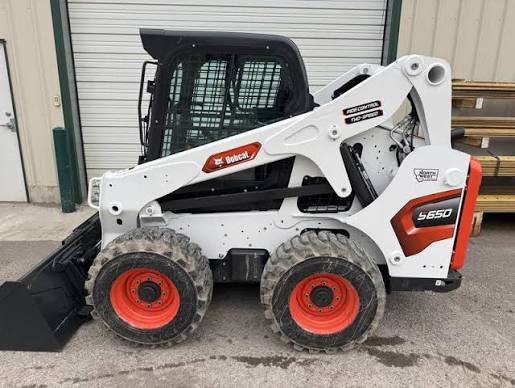

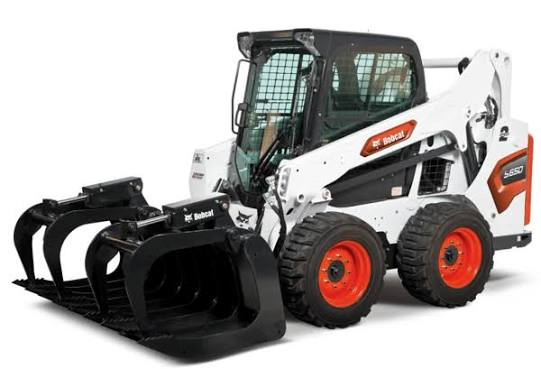

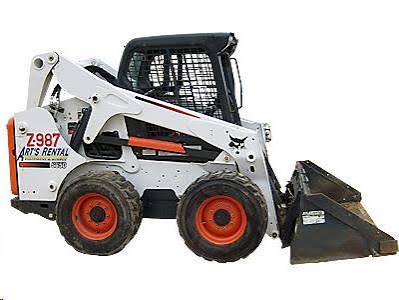

Bobcat S650 Skid Steer Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,690 lb
Max Speed7.1 mph
Fuel Capacity23.9 gal

Engine

Engine specifications
Gross Power74.3 hp
AspirationTurbocharged
Fuel TypeDiesel
Emissions CertificationTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.0 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Wheelbase46 in
Width Over Tires72 in
Reach at Max Lift and Dump32 in
Length with Bucket137 in
Turning Radius from Center - inc bucket83 in
Length w/o Bucket109 in

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55.1) Starting 2024 Model Year
Operating Width IN. (CM)74 (188) Starting 2026 Model Year
OPERATING LOAD LBS. (KG)2,690 (1,220) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%2,690 (1,220) Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating2,690 lb
Tipping Angle5,380 °
Operating Width74 in
