Bobcat

S70

Skid Steer Loader

Operating Weight
2,796 lb
Max Speed
6.1 mph
Gross Power
23.5 hp
All skid steer loaders

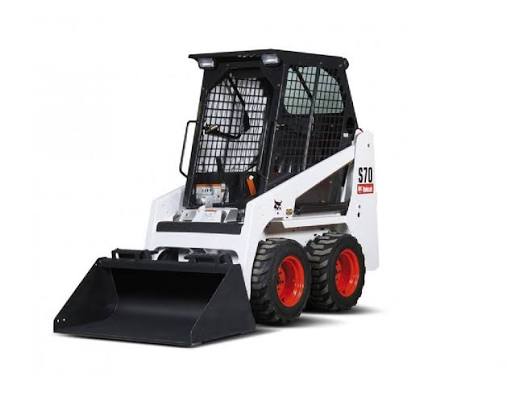

Bobcat S70 Skid Steer Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,796 lb
Max Speed6.1 mph
Fuel Capacity6.5 gal
Tire Size5.7-12
Lift Arm PathRadius

Engine

Engine specifications
Engine ModelD1005-E
Displacement61 in³
Gross Power23.5 hp
Number of Cylinders3
AspirationNatural
Fuel TypeDiesel
Emission Tier LevelTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,000 psi
Main pump flow standard9.8 gal/min

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab72 in
Wheelbase29 in
Width Over Tires36 in
Reach at Max Lift and Dump16 in
Length with Bucket98 in
Clearance at Max Lift and Dump77 in
Turning Radius from Center - inc bucket61 in
Length w/o Bucket77 in

General Specifications

General Specifications specifications
Engine Power HP (KW)23.5 (17.5) — Starting 2019 Model Year
Operating Width IN. (CM)35.5 (90.2) — Starting 2019 Model Year
OPERATING LOAD LBS. (KG)700 (318) — Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%700 (318) — Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating700 lb
Tipping Angle1,512 °
Operating Width36 in
Bucket Width36 in
Loader SeriesK-Series
Height to hinge pin95 in
