BOMAG
Dynapac
F5CS
Asphalt Paver
17 specifications

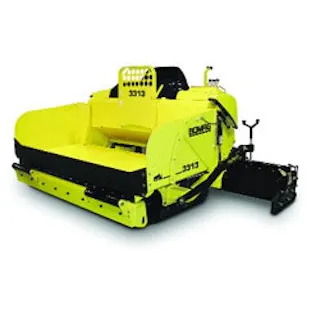

BOMAG
3313
- Operating Weight w/ Screed
- 10,000 lb
- Paving Width - max
- 158 in
- Gross Power
- 50.0 hp
- Length w/ Screed
- 110 in
1 / 5
Image 1 of 5
Specifications
13 data points
Operating Specifications
| Operating Weight w/ Screed | 10,000 lb |
|---|---|
| Fuel Capacity | 16.5 gal |
| Hydraulic System Fluid Capacity | 13.8 gal |
| Cooling System Fluid Capacity | 3.1 gal |
Engine
| Gross Power | 50.0 hp |
|---|
Dimensions
| Transport Width | 103 in |
|---|---|
| Transport Height | 78 in |
| Track Width | 13 in |
| Length w/ Screed | 110 in |
Hopper/Paver
| Paving Width - max | 158 in |
|---|---|
| Paving Speed - max | 2.8 mph |
| Travel Speed - max | 2.9 mph |
| Paving Thickness - max | 6 in |
