Case IH

SR210

Skid Steer Loader

All skid steer loaders

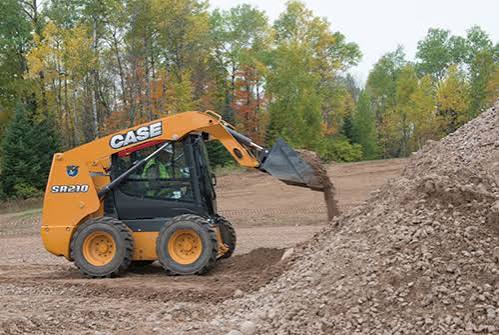

Case IH SR210 Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

16 data points

Engine

Engine specifications
Engine ModelFPT F5H FL463 A*F001
Displacement207 in³
Emissions CertificationTier 4 Final (CEGR DOC PM Catalyst)
Engine peak torque232 lb-ft

Weights

Weights specifications
Operating Weight6,967 lb

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow24.2 gal/min
Optional auxiliary hydraulic pump flow33.2 gal/min

Dimensions

Dimensions specifications
Width Over Tires70 in
Height - Top of ROPS/FOPS78 in
Overall length (W/bucket)134 in
Dump height - fully raised, 45 degrees dump96 in
Bucket hinge pin fully raised124 in

Fluid Capacities

Fluid Capacities specifications
Rated Operating Capacity2,101 lb

Bucket

Bucket specifications
Breakout Force7,261 lb

Loader

Loader specifications
Tipping Angle4,200 °

Lift System

Lift System specifications
Lift ConfigurationRadial
