Case

440CT Series 3

Compact Track Loader

Operating Weight
8,925 lb
Max Speed - high range
8.0 mph
Displacement
274 in³
Gross Power
90.0 hp
All compact track loaders

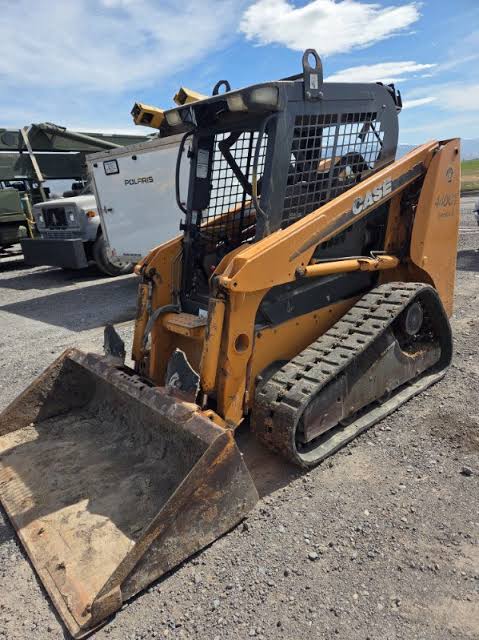

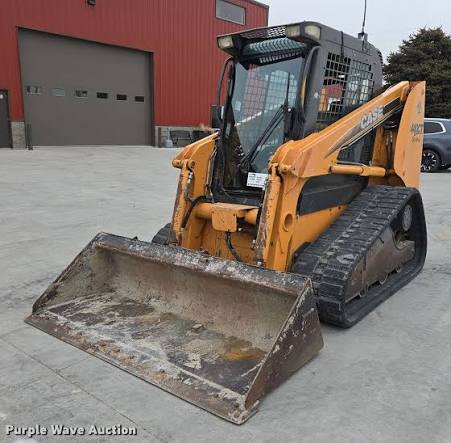

Case 440CT Series 3 Compact Track Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,925 lb
Max Speed - high range8.0 mph
Max Speed - low range5.1 mph
Fuel Capacity23.3 gal
Hydraulic System Fluid Capacity7.1 gal
Cooling System Fluid Capacity3.0 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine Model445T/M3
Displacement274 in³
Power Measured @2,300 rpm
Gross Power90.0 hp
Net Power83.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,300 rpm
Peak Torque288 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow22.0 gal/min
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab81 in
Reach at Max Lift and Dump25 in
Width Over Tracks72 in
Length with Bucket130 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket80 in
Turning Radius from Center - machine rear57 in
Length - without Bucket103 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground57 in
Width of Track16 in
Number of Track Rollers per Side3
Ground Contact Area1,780 in³

Loader

Loader specifications
Bucket Capacity0.71 yd³
Tipping Angle6,000 °
Operating Load3,000 lb
