Case
Takeuchi
TL120
Compact Track Loader
44 specifications
1 / 5

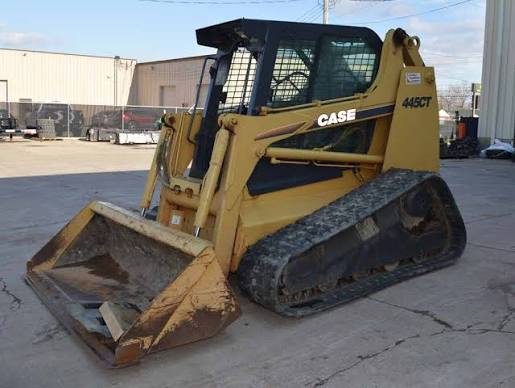

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 9,815 lb |
|---|---|
| Max Speed - high range | 8.0 mph |
| Max Speed - low range | 5.1 mph |
| Fuel Capacity | 17.3 gal |
| Hydraulic System Fluid Capacity | 11.0 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
| Engine Oil Capacity | 3.2 gal |
Engine
| Engine Model | Family III 445/M2 |
|---|---|
| Displacement | 274 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 80.5 hp |
| Net Power | 74.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 236 lb-ft |
Hydraulic System
| Pump Flow | 21.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | gear pump |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 80 in |
| Reach at Max Lift and Dump | 35 in |
| Width Over Tracks | 83 in |
| Length with Bucket | 135 in |
| Clearance at Max Lift and Dump | 93 in |
| Turning Radius from Center - inc bucket | 84 in |
| Turning Radius from Center - machine rear | 61 in |
| Length - without Bucket | 103 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 65 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 4 |
| Ground Contact Area | 2,293 in³ |
| Track Gauge | 66 in |
Loader
| Bucket Capacity | 0.80 yd³ |
|---|---|
| Tipping Angle | 7,000 ° |
| Operating Load | 3,500 lb |
| Breakout Force | — |
