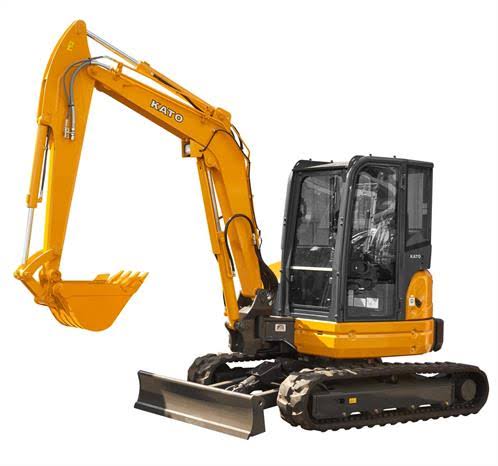

Case
Kato
HD550VII
Excavator
50 specifications
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 53,140 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 56.1 gal/min |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Hydraulic System Relief Valve Pressure | 4,554 psi |
| Engine Oil Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 65 A |
Engine
| Engine Model | 6T-830 |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 178.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 574 lb-ft |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 119 in |
| Width to Outside of Tracks | 133 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 43,000 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 292 in |
|---|---|
| Max Reach Along Ground | 421 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Digging Depth | 264 in |
| Max Cutting Height | 391 in |
| Shipping Length of Unit | 395 in |
| Shipping Height of Unit | 127 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.90 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 275 in |
|---|---|
| Max Vertical Wall Digging Depth | 245 in |
| Max Cutting Height | 383 in |
| Max Loading Height | 264 in |
| Max Reach Along Ground | 404 in |
| Shipping Length of Unit | 394 in |
| Shipping Height of Unit | 121 in |

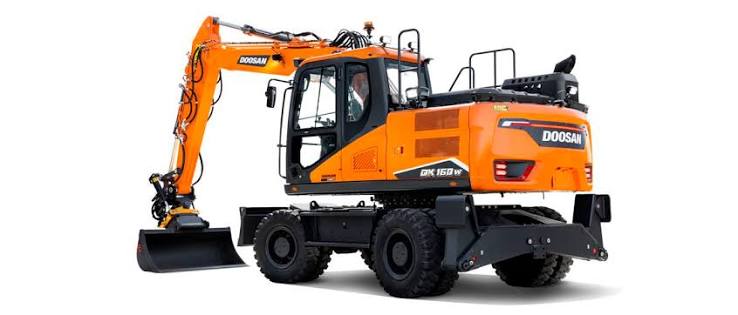

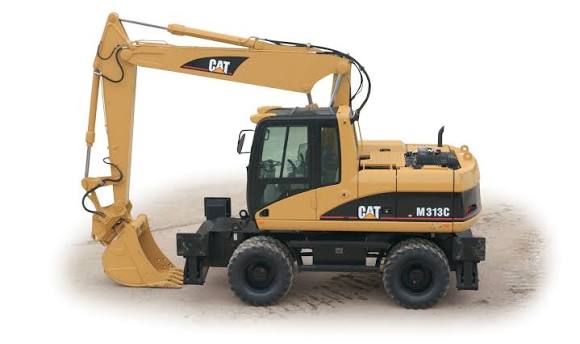

Comparable machines
