Case

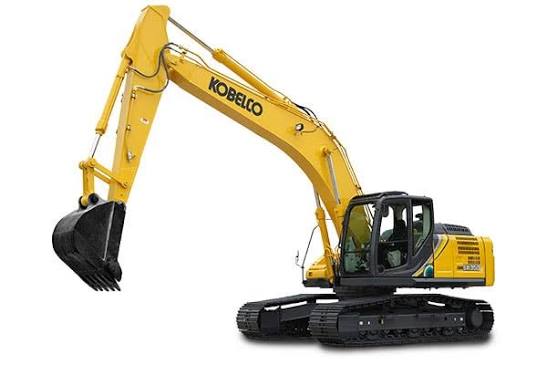

Kobelco
SK350LC-10 H&W
Excavator
35 specifications
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 73,590 lb |
|---|---|
| Fuel Capacity | 153.0 gal |
| Hydraulic Pump Flow Capacity | 71.1 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 4,620 psi |
| Engine Oil Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.4 gal |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | M11-C265 |
|---|---|
| Displacement | 661 in³ |
| Power Measured @ | 1,700 rpm |
| Net Power | 240.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 900 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 155 in |
| Tail Swing Radius | 128 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 52,350 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 324 in |
|---|---|
| Max Reach Along Ground | 461 in |
| Max Loading Height | 294 in |
| Max Vertical Wall Digging Depth | 281 in |
| Max Cutting Height | 417 in |
| Shipping Length of Unit | 432 in |
| Shipping Height of Unit | 151 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.60 yd³ |
| Minimum Bucket Capacity | 1.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 292 in |
|---|---|
| Max Vertical Wall Digging Depth | 250 in |
| Max Cutting Height | 406 in |
| Max Loading Height | 283 in |
| Max Reach Along Ground | 431 in |
| Shipping Length of Unit | 428 in |
| Shipping Height of Unit | 132 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 269 in |
|---|---|
| Max Cutting Height | 394 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 221 in |
| Max Reach Along Ground | 409 in |
| Shipping Length of Unit | 432 in |
| Shipping Height of Unit | 141 in |
