Case

CX210C

Excavator

Operating Weight
45,768 lb
Max Digging Depth
241 in
Max Digging Depth
222 in
Net Power
159.6 hp
All excavators

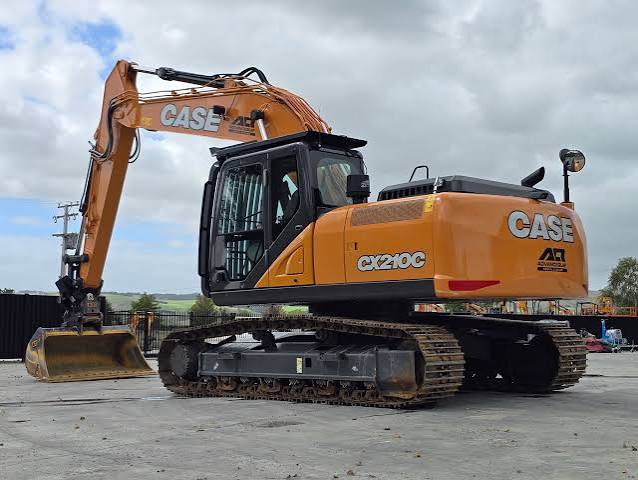

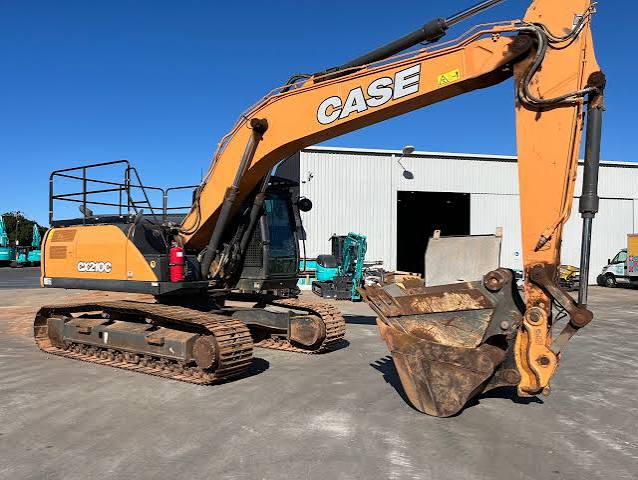

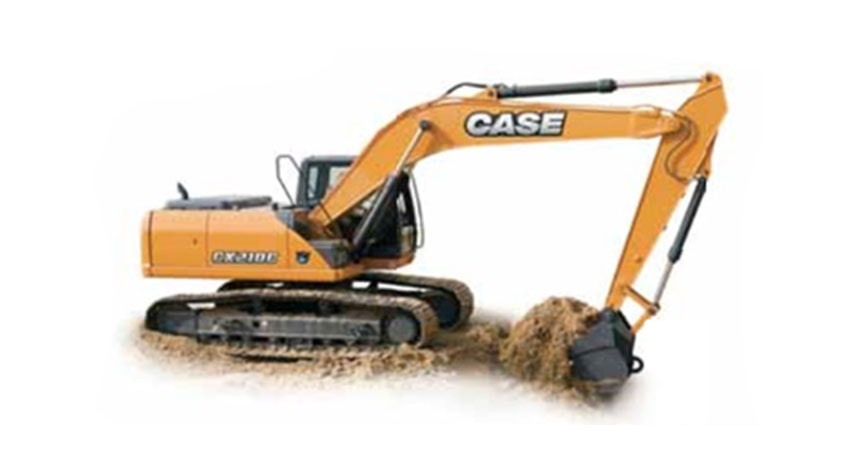

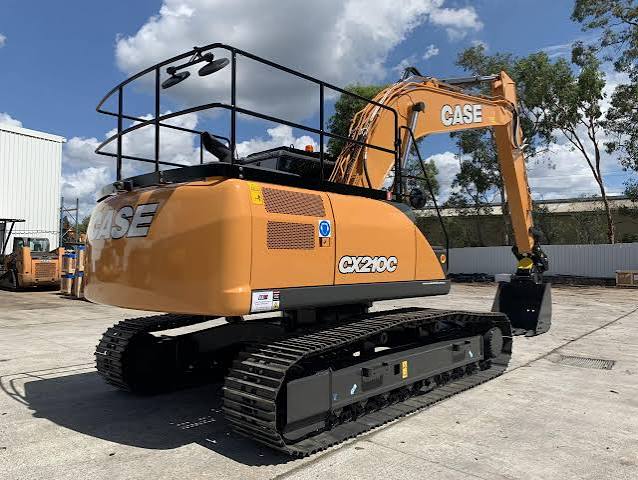

Case CX210C Excavator
1 / 5
Image 1 of 5
Image: iseekplant.com.au

Specifications

51 data points

Operating Specifications

Operating Specifications specifications
Operating Weight45,768 lb
Fuel Capacity108.4 gal
Hydraulic System Fluid Capacity63.5 gal
Cooling System Fluid Capacity8.2 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelAM-4HK1X
Displacement317 in³
Power Measured @1,800 rpm
Net Power159.6 hp
Torque Measured @1,500 rpm
Max Torque458 lb-ft
Engine MakeIsuzu
Bore5 in
Stroke5 in
Alternator50 A

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab126 in
Wheelbase145 in
Overall Length373 in
Gradeability70.0 %
Track Gauge95 in
Undercarriage Width119 in
Cab height121 in
Track height36 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side8
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull42,264 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth241 in
Max Reach Along Ground300 in
Max.Dumping Height260 in
Max Digging Height371 in
Bucket Digging Force31,923 lb
Arm Digging Force27,651 lb
Boom length226 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth222 in
Max.Dumping Height250 in
Bucket Digging Force - SAE31,923 lb
Max. digging height360 in
Arm Digging Force - SAE31,923 lb
Boom length226 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth263 in
Max.Dumping Height269 in
Max. digging height379 in
Arm Digging Force - SAE23,155 lb
Boom length226 in
Bucket digging force31,923 lb

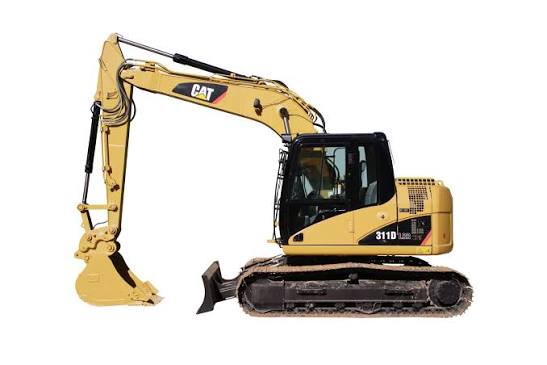

Comparable machines
