Caterpillar
Komatsu
PW75-1
Excavator
30 specifications
1 / 5
Image 1 of 5
Specifications
76 data points
Operating Specifications
| Fuel Capacity | 55.5 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 31.0 gal/min |
| Hydraulic System Fluid Capacity | 38.4 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Swing Drive Fluid Capacity | 0.8 gal |
Engine
| Engine Model | Cat C4.2 ACERT |
|---|---|
| Displacement | 259 in³ |
| Gross Power | 86.0 hp |
| Net Power | 80.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
| Net Power - SAE J1349 | 80.0 hp |
| Flywheel Power | 80.0 hp |
| ISO 9249 | 80.0 hp |
| SAE J1349 | 80.0 hp |
Weights
| Operating Weight | 27,514 lb |
|---|---|
| Operating Weight - Long Undercarriage | 27,514 lb |
Hydraulic System
| Maximum Pressure - Swing | 3,336 psi |
|---|---|
| Maximum Pressure - Travel | 5,076 psi |
| Boom Cylinder - Bore | 4 in |
| Boom Cylinder - Stroke | 39 in |
| Main Implement System - Maximum Flow (2x) | 30.9 gal/min |
| Stick Cylinder - Bore | 4 in |
| Stick Cylinder - Stroke | 47 in |
| Maximum Pressure - Implements | 4,424 psi |
| Bucket Cylinder - Bore | 4 in |
| Bucket Cylinder - Stroke | 37 in |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 110 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
| Transport Width | 102 in |
| Shipping Height | 114 in |
| Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 25,628 lb |
Boom/Stick Excavator Option 1
| Max Loading Height | 215 in |
|---|---|
| Max Vertical Wall Digging Depth | 176 in |
| Max Cutting Height | 307 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 113 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Drive System
| Maximum Drawbar Pull | 25,600 lb |
|---|---|
| Travel Speed | 3.1 mph |
Service Refill Capacities
| Cooling System | 5.0 gal |
|---|---|
| Hydraulic System - Including Tank | 38.0 gal |
| Final Drive - Each | 1.0 gal |
| Engine Oil | 5.0 gal |
| Hydraulic Tank | 21.0 gal |
| Swing Drive - Each | 1.0 gal |
| Fuel Tank | 55.0 gal |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 212 in |
|---|---|
| Max Vertical Wall Digging Depth | 189 in |
| Max Cutting Height | 316 in |
| Max Loading Height | 223 in |
| Max Reach Along Ground | 312 in |
| Shipping Length of Unit | 271 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 221 in |
|---|---|
| Max Cutting Height | 320 in |
| Max Loading Height | 228 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Reach Along Ground | 319 in |
| Shipping Length of Unit | 269 in |
| Shipping Height of Unit | 125 in |
Standards
| Cab/FOGS | SAE J1356 FEB88/ISO 10262 |
|---|

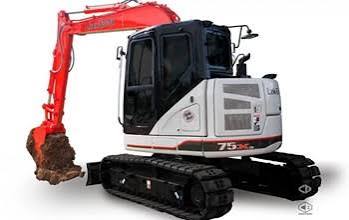

Comparable machines
