Case

CX330 LR

Excavator

Operating Weight
86,862 lb
Max Digging Depth
660 in
Net Power
248.0 hp
All excavators

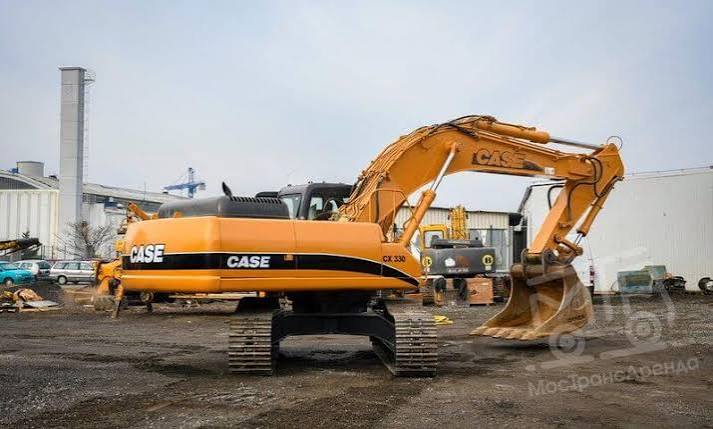

Case CX330 LR Excavator
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight86,862 lb
Fuel Capacity153.0 gal
Hydraulic Pump Flow Capacity150.1 gal/min
Hydraulic System Fluid Capacity92.0 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity9.5 gal
Cooling System Fluid Capacity8.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelAH-6HKIX Tier III certified
Displacement475 in³
Power Measured @2,000 rpm
Net Power248.0 hp
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque796 lb-ft

Dimensions

Dimensions specifications
Ground Clearance228 in
Height - Top of Cab124 in
Length of Track on Ground159 in
Tail Swing Radius142 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance576 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge103 in
Number of Track Rollers per Side8
Max Travel Speed3.4 mph
Shoe Size32 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Drawbar Pull60,923 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth660 in
Max Reach Along Ground826 in
Max Loading Height515 in
Max Vertical Wall Digging Depth556 in
Max Cutting Height599 in
Shipping Length of Unit661 in
Shipping Height of Unit138 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.80 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
