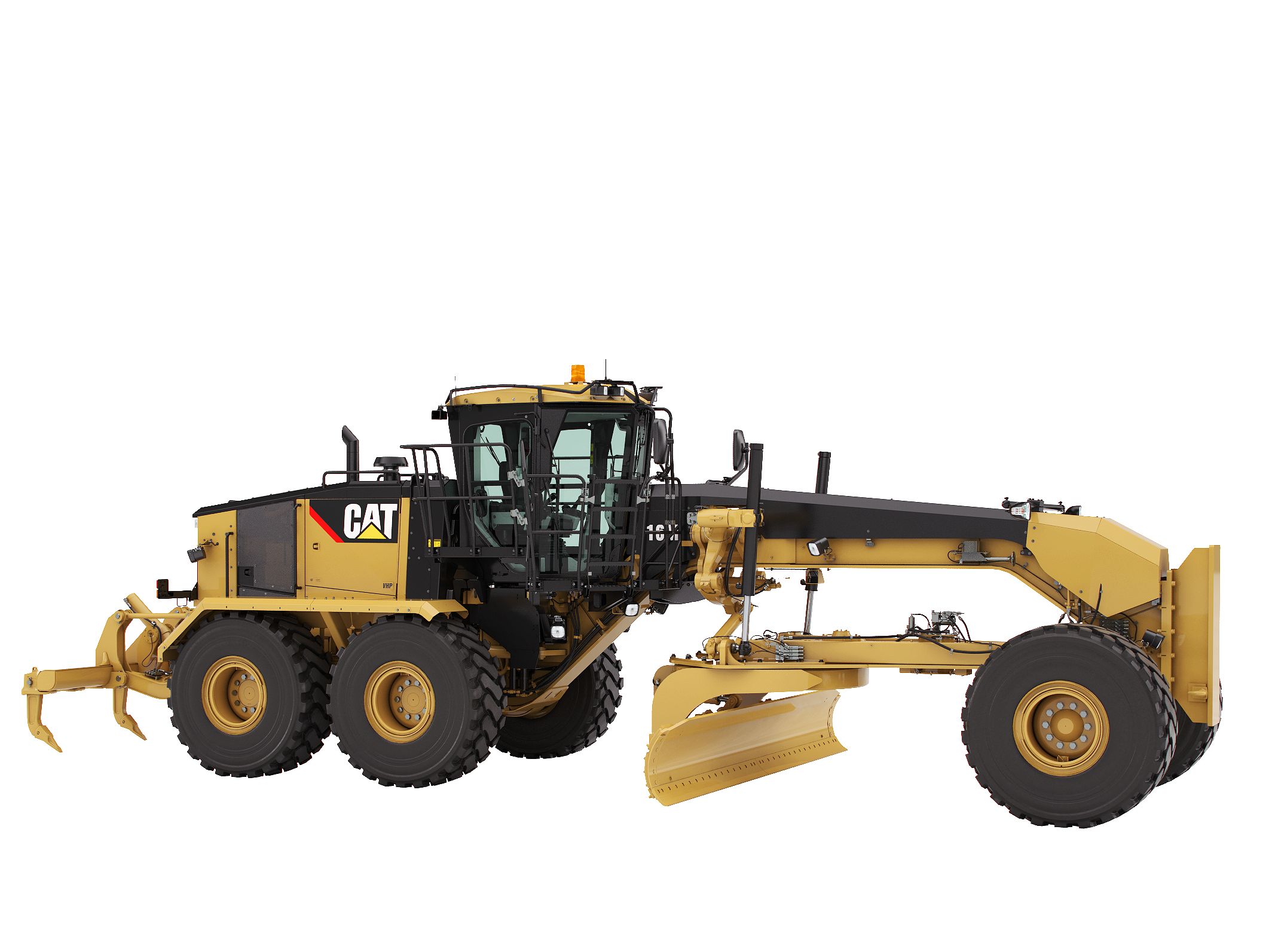

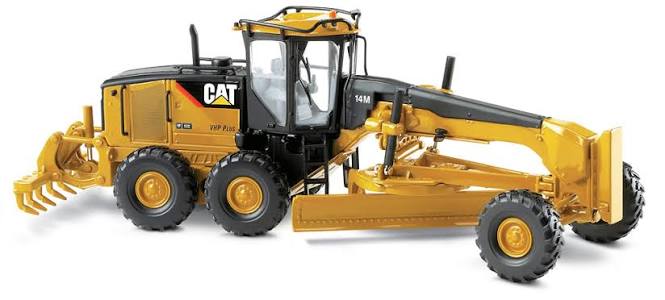

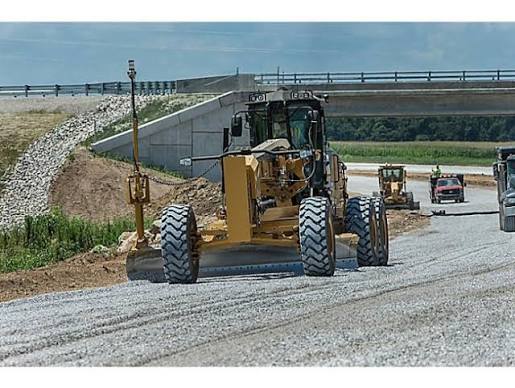

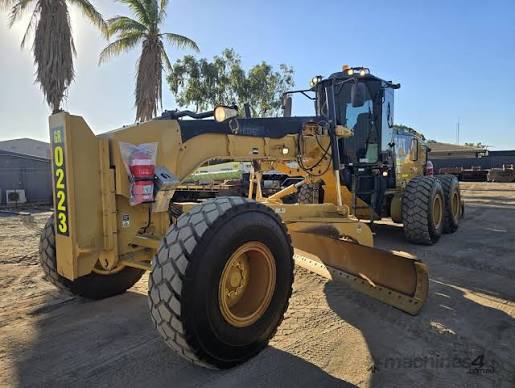

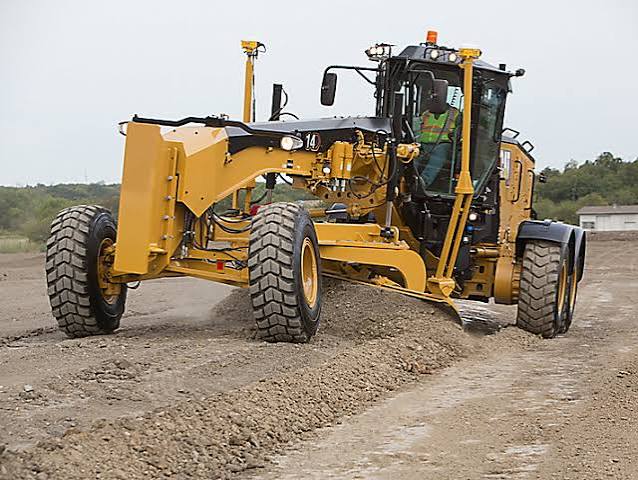

14M

Specifications

179 data points

Operating Specifications specifications
Max Operation Weight - Total	65,998 lb
Max Operation Weight - Front Axle	21,912 lb
Max Operation Weight - Rear Axle	44,086 lb
Std Operation Weight - Total	47,133 lb
Fuel Capacity	130.0 gal
Std Operation Weight - Front Axle	12,611 lb
Std Operation Weight - Rear Axle	34,522 lb
Hydraulic System Fluid Capacity	15.9 gal
Tandem Case Fluid Capacity (each)	25.5 gal
Cooling System Fluid Capacity	12.3 gal
Transmission Fluid Capacity	23.5 gal
Circle Gearbox Fluid Capacity	1.6 gal
Articulation Angle - Left/Right	20 °
Forward - 1st	2.7 mph
Forward - 2nd	3.7 mph
Forward - 3rd	5.3 mph
Forward - 4th	7.3 mph
Forward - 5th	11.4 mph
Forward - 6th	15.4 mph
Reverse - 1st	2
Reverse - 2nd	4.0 mph
Reverse - 3rd	5.8 mph
Steering Range - Left/Right	48 °
Top Speed - Forward	31.0 mph
Top Speed - Reverse	24.5 mph
Turning Radius - Outside Front Tires	311 in
Forward - 7th	21.3 mph
Forward - 8th	31.0 mph
Reverse - 4th	9.0 mph
Reverse - 5th	16.9 mph
Reverse - 6th	24.5 mph

Engine specifications
Engine Model	Cat C11 ACERT VHP
Displacement	677 in³
Power Measured @	1,800 rpm
Number of Cylinders	6
Bore	5 in
Stroke	6 in
Max Power	274.0 hp
Net Power Gears 7-8	274.0 hp
Net Power Gear 5-6	274.0 hp
Net Power Gear 1-2	259.0 hp
Net Power Gear 4-6	274.0 hp
Base Power (1st Gear) - Net	259.0 hp
Derating Altitude	156,000 in
High - Ambient Capability	122 °
Maximum Torque	1,049 lb-ft
Standard - Ambient Capability	109 °
V Plus Range - Net	258.8 – 293.7 hp
Base Power (All Gears) - Net	259.0 hp
Base Power (1st Gear) - Net - Metric	262.0 hp
V Plus Range - Net - Metric	258.8 – 296.4 hp
V Range - Net	258.8 – 273.6 hp

Weights specifications
Operating Weight - Typically Equipped	53,738 lb
Gross Vehicle Weight - Maximum - Front Axle	9,969 lb
Gross Vehicle Weight - Maximum - Rear Axle	44,021 lb
Gross Vehicle Weight - Maximum - Total	65,998 lb
Gross Vehicle Weight - Base - Front Axle	12,541 lb
Gross Vehicle Weight - Base - Rear Axle	34,255 lb
Gross Vehicle Weight - Base - Total	46,796 lb
Gross Vehicle Weight - Typically Equipped - Front Axle	13,704 lb
Gross Vehicle Weight - Typically Equipped - Total	53,738 lb
Gross Vehicle Weight - Typically Equipped	53,738 lb

Hydraulic System specifications
Pump Flow	74.0 gal/min
Pump Type	Variable displacement
Relief Valve Pressure	3,500 psi
Maximum system pressure	3,500 psi
Circuit Type	Electro-hydraulic load sensing closed center
Pump Output	74.0 gal/min
Standby Pressure	450 psi

Dimensions specifications
Height - Top of Cab	139 in
Wheelbase	258 in
Overall Length	371 in
Width Over Tires	110 in
Height to Top of Isomount Cab	139 in
Blade Base	113 in
Tandem Axle Wheelbase	66 in
Rear Ground Clearance	16 in
Width - Outside Rear Tires	110 in
Height - Exhaust Stack	128 in
Width - Outside Front Tires	110 in
Length - Front Axle to Moldboard	112 in
Height - Top of Cylinders	112 in
Width - Tire Center Lines	93 in
Length - Between Tandem Axles	65 in
Height - Front Axle Center	25 in
Length - Front Tire to Rear of Machine	371 in
Length - Front Axle to Mid Tandem	258 in
Ground Clearance - Rear Axle	15 in
Length - Counterweight to Ripper	429 in

Transmission specifications
Max Speed - Forward	31.0 mph
Max Speed - Reverse	24.5 mph
Number of Gears - Forward	8
Number of Gears - Reverse	6
Transmission Type	direct drive power shift countershaft

Moldboard specifications
Moldboard Height	27 in
Moldboard Width	168 in
Moldboard Thickness	1 in
Side Shift Left	29 in
Side Shift Right	31 in
Max Depth of Cut	17 in
Blade Pull at Max Weight	39,678 lb
Blade Down Pressure	38,667 lb
Moldboard Length	168 in
Arc Radius	16 in
Blade Width	168 in
Cutting Edge Thickness	1 in
Cutting Edge Width	8 in
End Bit - Thickness	1 in
End Bit - Width	6 in
Throat Clearance	5 in
Blade Pull - Maximum GVW	39,619 lb
Blade Down Pressure - Base GVW	22,130 lb
Blade Down Pressure - Maximum GVW	38,781 lb
Blade Pull - Base GVW	30,829 lb

Blades specifications
Maximum Shoulder Reach Outside of Tires - Left	85 in
Maximum Shoulder Reach Outside of Tires - Right	90 in
Moldboard Sideshift - Left	29 in
Moldboard Sideshift - Right	31 in
Maximum Lift Above Ground	17 in
Blade Tip Range - Backward	5 °
Blade Tip Range - Forward	40 °
Circle Centershift - Left	26 in
Circle Centershift - Right	21 in
Maximum Blade Position Angle	65 °
Maximum Depth of Cut	17 in

Circle specifications
Max Lift Above Ground	17 in
Max Reach Outside Tires - Left	85 in
Max Reach Outside Tires - Right	90 in
Diameter	72 in
Blade Tip Angle - Front	40 °
Blade Tip Angle - Rear	5 °
Shift Left	26 in
Shift Right	21 in

Front Axle specifications
Wheel Lean	17 °
Oscillation - Total	32 °

Steering System specifications
Turning Radius	311 in
Articulation Angle	20 °

Power Train specifications
Brakes - Parking	Spring applied hydraulically released
Brakes - Secondary	Oil-actuated oil-disc
Brakes - Service	oil-actuated oil-disc
Brakes - Service - Surface Area	5,347 in³
Forward/Reverse Gears	8 Fwd / 6 Rev
Transmission	Direct drive power shift Countershaft

Service Refill specifications
Cooling System	12.3 gal
Circle Drive Housing	1.6 gal
Engine Oil	7.9 gal
Front Wheel Spindle Bearing Housing	0.3 gal
Fuel Capacity	130.0 gal
Hydraulic System - Tank	15.9 gal
Tandem Housing - Each	25.5 gal
Transmission - Differential - Final Drives	23.5 gal

Ripper specifications
Penetration Force	27,222 lb
Pry-Out Force	28,146 lb
Ripper Shank Holders	7
Ripping Depth - Maximum	16 in
Machine Length Increase, Beam Raised	46 in
Shank Holder Spacing - Maximum	19 in
Shank Holder Spacing - Minimum	15 in

Frame specifications
Front Frame Structure - Height	17 in
Front Frame Structure - Width	12 in
Circle - Blade Beam Thickness	2 in
Circle - Diameter	72 in
Drawbar - Height	8 in
Front Axle - Height to Center	25 in
Front Axle - Total Oscillation per Side	32 °
Front Axle - Wheel Lean - Left/Right	17 °
Drawbar - Width	3 in

Tandems specifications
Drive Chain Pitch	2 in
Height	24 in
Sidewall Thickness - Inner	1 in
Sidewall Thickness - Outer	1 in
Tandem Oscillation - Front Down	25 °
Tandem Oscillation - Front Up	15 °
Wheel Axle Spacing	65 in
Width	8 in
