Caterpillar
New Holland
E200SR
Excavator
44 specifications
Caterpillar
213
- Operating Weight
- 35,825 lb
- Max Digging Depth
- 198 in
- Max Digging Depth
- 215 in
- Net Power
- 102.0 hp
1 / 5

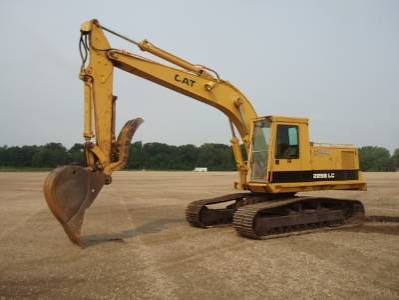

Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 35,825 lb |
|---|---|
| Fuel Capacity | 52.9 gal |
| Hydraulic Pump Flow Capacity | 45.0 gal/min |
| Hydraulic System Fluid Capacity | 84.6 gal |
| Hydraulic System Relief Valve Pressure | 4,351 psi |
| Engine Oil Capacity | 4.7 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.2 gal |
Engine
| Engine Model | 6.354.4P |
|---|---|
| Displacement | 354 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 102.0 hp |
| Aspiration | Naturally |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 91 in |
| Width to Outside of Tracks | 95 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 76 in |
| Max Travel Speed | 1.8 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 42 |
| Drawbar Pull | 14,500 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 198 in |
|---|---|
| Max Reach Along Ground | 316 in |
| Max Loading Height | 209 in |
| Max Cutting Height | 284 in |
| Shipping Length of Unit | 326 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.20 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 215 in |
|---|---|
| Max Cutting Height | 289 in |
| Max Reach Along Ground | 337 in |
| Shipping Length of Unit | 329 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 236 in |
|---|---|
| Max Cutting Height | 283 in |
| Max Reach Along Ground | 349 in |
| Shipping Length of Unit | 326 in |
| Shipping Height of Unit | 118 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 182 in |
|---|---|
| Max Cutting Height | 339 in |
| Max Reach Along Ground | 331 in |
| Max Loading Height | 252 in |
| Shipping Length of Unit | 326 in |
Boom/Stick Excavator Option 5
| Max Digging Depth | 200 in |
|---|---|
| Max Reach Along Ground | 349 in |
| Max Cutting Height | 350 in |
| Shipping Height of Unit | 122 in |
| Shipping Length of Unit | 329 in |
Boom/Stick Excavator Option 6
| Max Digging Depth | 222 in |
|---|---|
| Max Reach Along Ground | 361 in |
| Max Cutting Height | 347 in |
