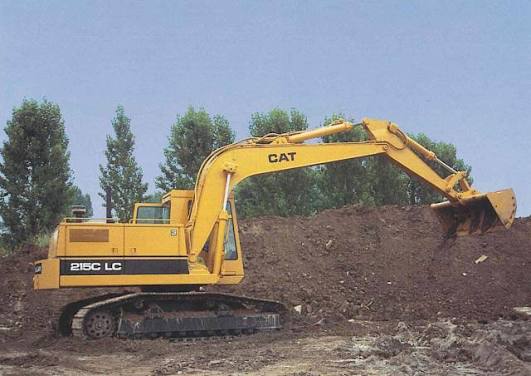

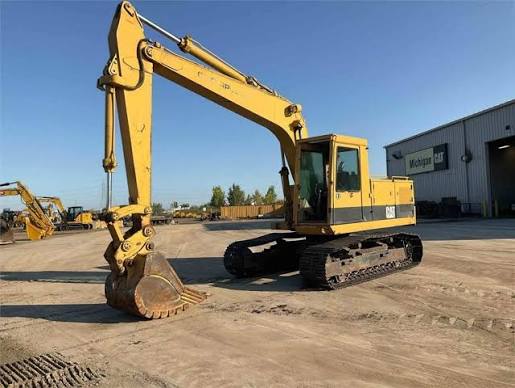

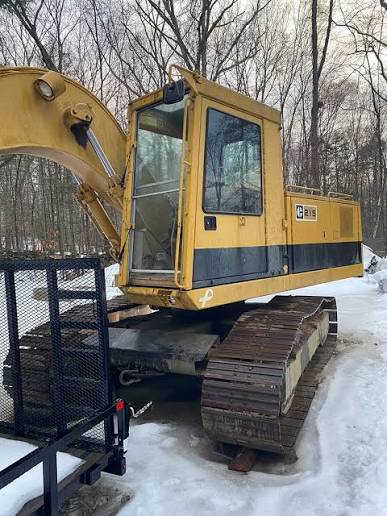

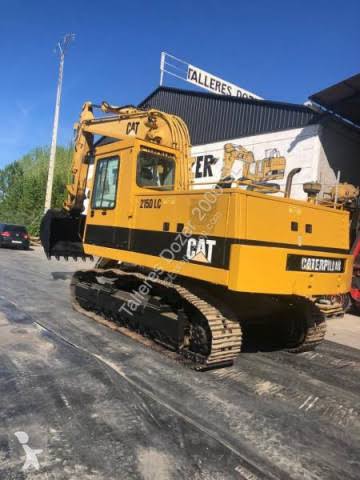

Caterpillar
215
- Operating Weight
- 36,156 lb
- Max Digging Depth
- 209 in
- Max Digging Depth
- 226 in
- Net Power
- 85.0 hp
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 36,156 lb |
|---|---|
| Fuel Capacity | 55.0 gal |
| Hydraulic Pump Flow Capacity | 84.1 gal/min |
| Hydraulic System Fluid Capacity | 75.1 gal |
| Hydraulic System Relief Valve Pressure | 4,000 psi |
| Engine Oil Capacity | 5.0 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 5.3 gal |
| Alternator Supplied Amperage | 19 A |
Engine
| Engine Model | 3304 |
|---|---|
| Displacement | 427 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 85.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 120 in |
| Tail Swing Radius | 103 in |
| Width to Outside of Tracks | 96 in |
| Removal Counterweight Clearance | 37 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 76 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.1 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 44 |
| Drawbar Pull | 26,400 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 209 in |
|---|---|
| Max Reach Along Ground | 331 in |
| Max Loading Height | 214 in |
| Max Vertical Wall Digging Depth | 138 in |
| Shipping Length of Unit | 357 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.80 yd³ |
Boom/Stick Excavator Option 2
| Max Digging Depth | 226 in |
|---|---|
| Max Vertical Wall Digging Depth | 143 in |
| Max Loading Height | 209 in |
| Max Reach Along Ground | 340 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 248 in |
|---|---|
| Max Loading Height | 217 in |
| Max Vertical Wall Digging Depth | 162 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 353 in |
| Shipping Height of Unit | 130 in |
