Caterpillar

229D

Excavator

Operating Weight
69,887 lb
Max Digging Depth
254 in
Max Digging Depth
278 in
Net Power
156.9 hp
All excavators

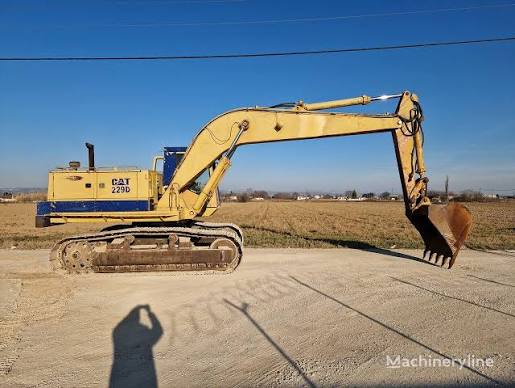

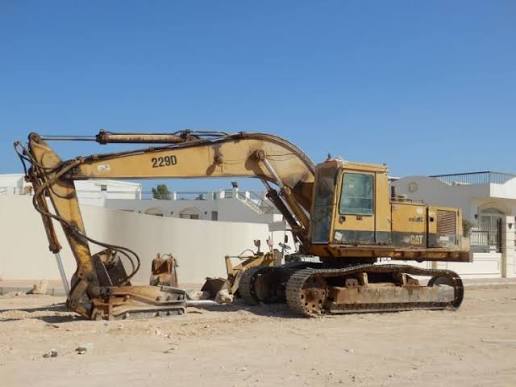

Caterpillar 229D Excavator
1 / 5
Image 1 of 5
Image: blaisesmith.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight69,887 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity121.0 gal/min
Hydraulic System Relief Valve Pressure4,300 psi

Engine

Engine specifications
Engine Model3304
Displacement427 in³
Net Power156.9 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab133 in
Tail Swing Radius119 in
Width to Outside of Tracks128 in
Removal Counterweight Clearance49 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge104 in
Max Travel Speed1.8 mph
Shoe Size24 in
Drawbar Pull53,505 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth254 in
Max Reach Along Ground402 in
Max Loading Height277 in
Max Vertical Wall Digging Depth127 in
Max Cutting Height380 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth278 in
Max Vertical Wall Digging Depth148 in
Max Cutting Height390 in
Max Loading Height287 in
Max Reach Along Ground425 in
