Caterpillar

231D LC

Excavator

Operating Weight
78,264 lb
Max Digging Depth
274 in
Max Digging Depth
298 in
Net Power
200.0 hp
All excavators

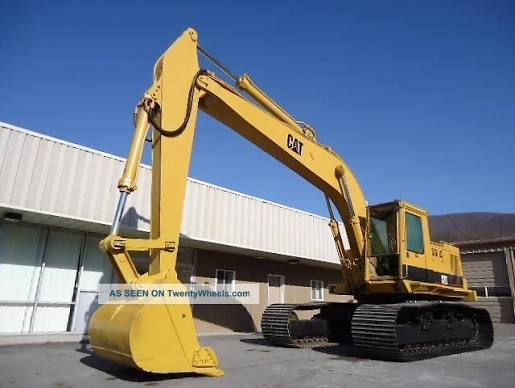

Caterpillar 231D LC Excavator
1 / 5
Image 1 of 5
Image: twentywheels.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight78,264 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity121.0 gal/min
Hydraulic System Relief Valve Pressure4,800 psi

Engine

Engine specifications
Engine Model3208
Displacement635 in³
Net Power200.0 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab133 in
Tail Swing Radius119 in
Width to Outside of Tracks137 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge104 in
Max Travel Speed3.5 mph
Shoe Size32 in
Drawbar Pull67,443 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth274 in
Max Reach Along Ground420 in
Max Loading Height282 in
Max Vertical Wall Digging Depth209 in
Max Cutting Height397 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth298 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height408 in
Max Loading Height292 in
Max Reach Along Ground442 in
