Caterpillar

245

Excavator

Operating Weight
133,486 lb
Max Digging Depth
311 in
Max Digging Depth
335 in
Net Power
325.0 hp
All excavators

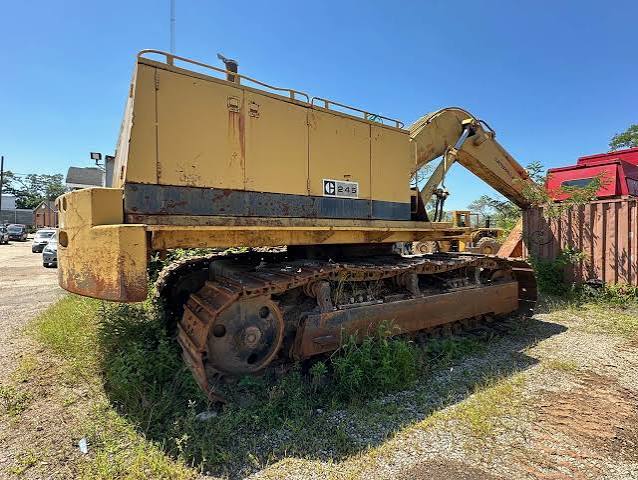

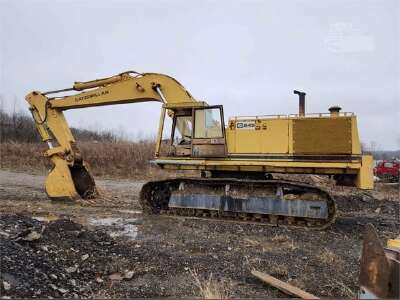

Caterpillar 245 Excavator
1 / 5
Image 1 of 5
Image: equipmenttrader.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight133,486 lb
Fuel Capacity157.8 gal
Hydraulic Pump Flow Capacity236.2 gal/min
Hydraulic System Fluid Capacity192.6 gal
Hydraulic System Relief Valve Pressure4,500 psi
Engine Oil Capacity9.6 gal
Cooling System Fluid Capacity20.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity9.3 gal
Alternator Supplied Amperage35 A

Engine

Engine specifications
Engine Model3406
Displacement891 in³
Power Measured @2,100 rpm
Net Power325.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab143 in
Width to Outside of Tracks143 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Track Gauge113 in
Max Travel Speed1.9 mph
Shoe Size30 in
Number of Shoes per Side45
Drawbar Pull98,600 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth311 in
Max Reach Along Ground492 in
Max Loading Height317 in
Max Vertical Wall Digging Depth210 in
Shipping Length of Unit533 in
Shipping Height of Unit181 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity3.81 yd³
Minimum Bucket Capacity2.00 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed5 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth335 in
Max Vertical Wall Digging Depth178 in
Max Loading Height287 in
Max Reach Along Ground503 in
Shipping Length of Unit520 in
Shipping Height of Unit181 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth383 in
Max Loading Height313 in
Max Vertical Wall Digging Depth258 in
Max Reach Along Ground553 in
Shipping Length of Unit505 in
Shipping Height of Unit216 in
