Caterpillar

245B II

Excavator

Operating Weight
141,427 lb
Max Digging Depth
306 in
Max Digging Depth
330 in
Net Power
360.0 hp
All excavators

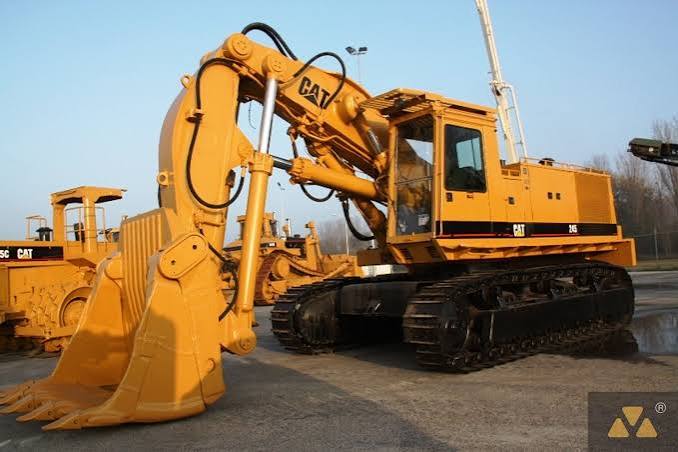

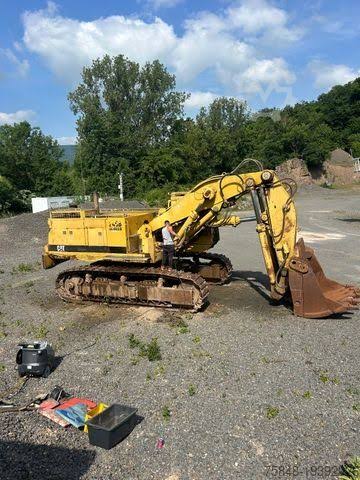

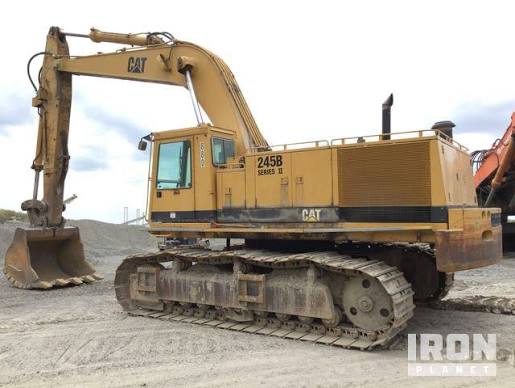

Caterpillar 245B II Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

83 data points

Operating Specifications

Operating Specifications specifications
Operating Weight141,427 lb
Fuel Capacity180.2 gal
Hydraulic Pump Flow Capacity232.0 gal/min
Hydraulic System Fluid Capacity192.6 gal
Hydraulic System Relief Valve Pressure4,500 psi
Engine Oil Capacity12.3 gal
Cooling System Fluid Capacity20.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity11.8 gal
Alternator Supplied Amperage50 A
Swing Speed5 rpm

Engine

Engine specifications
Displacement891 in³
Power Measured @2,100 rpm
Net Power360.0 hp
Aspirationturbocharged and aftercooled

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab143 in
Tail Swing Radius150 in
Width to Outside of Tracks128 in
Removal Counterweight Clearance43 in
Upper Structure Ground Clearance42 in
Length of Tracks222 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Max Travel Speed2.0 mph
Shoe Size30 in
Number of Shoes per Side45
Drawbar Pull96,218 lb
Loading Shovel Operating Weight146,122 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure16 psi
Backhoe Shoe Width 130 in
Backhoe Operating Weight - Shoe 1143,631 lb
Backhoe Ground Pressure - Shoe 112 psi
Number of Track Shoes per Side45
Backhoe Shoe Width 224 in
Backhoe Ground Pressure - Shoe 215 psi
Backhoe Shoe Width 336 in
Backhoe Ground Pressure - Shoe 310 psi

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth306 in
Max Reach Along Ground489 in
Max Loading Height300 in
Max Vertical Wall Digging Depth193 in
Max Cutting Height459 in
Shipping Length of Unit533 in
Shipping Height of Unit182 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed5 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth330 in
Max Vertical Wall Digging Depth204 in
Max Cutting Height454 in
Max Loading Height296 in
Max Reach Along Ground505 in
Shipping Length of Unit517 in
Shipping Height of Unit189 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth381 in
Max Cutting Height468 in
Max Loading Height311 in
Max Vertical Wall Digging Depth346 in
Max Reach Along Ground553 in
Shipping Length of Unit505 in
Shipping Height of Unit175 in

Loading Shovel

Loading Shovel specifications
Max Cutting Height406 in
Max Dump Height222 in
Max Dig Reach374 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth307 in
Max Cutting Height454 in
Max Dump Height300 in
Max Reach on Ground490 in
Max Vertical Wall Dig Depth200 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth331 in
Max Cutting Height448 in
Max Dump Height295 in
Max Reach on Ground505 in
Max Vertical Wall Dig Depth211 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth378 in
Max Cutting Height462 in
Max Dump Height311 in
Max Reach on Ground550 in
Max Vertical Wall Dig Depth254 in

Heavy Lift Trencher Model

Heavy Lift Trencher Model specifications
Operating Weight (Heavy Lift Trencher)155,448 lb
Engine Model (Heavy Lift Trencher)3406B
Ground Pressure (Heavy Lift Trencher)12 psi
Tail Swing Radius (Heavy Lift Trencher)155 in
Width to Outside of Tracks (Heavy Lift Trencher)143 in
