Caterpillar

365C L

Excavator

Operating Weight
154,037 lb
Max Digging Depth
372 in
Max Digging Depth
353 in
Net Power
411.0 hp
All excavators

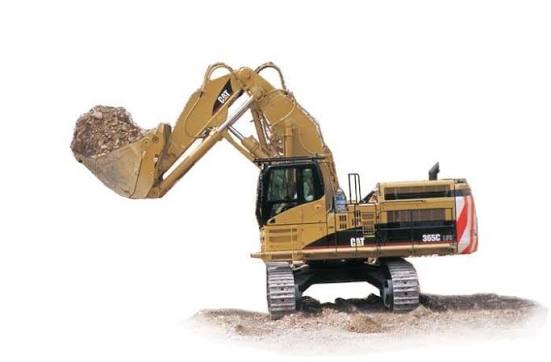

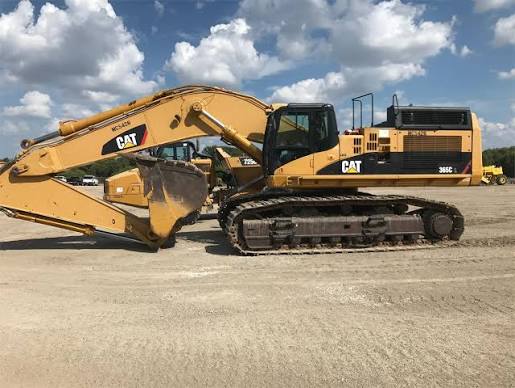

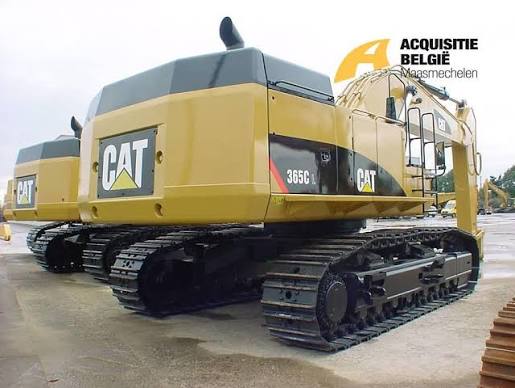

Caterpillar 365C L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

103 data points

Operating Specifications

Operating Specifications specifications
Operating Weight154,037 lb
Fuel Capacity211.0 gal
Hydraulic Pump Flow Capacity212.0 gal/min
Hydraulic System Fluid Capacity177.0 gal
Hydraulic System Relief Valve Pressure4,640 psi
Engine Oil Capacity14.3 gal
Cooling System Fluid Capacity25.0 gal
Swing Drive Fluid Capacity3.2 gal
Alternator Supplied Amperage75 A
Maximum Digging Depth379 in
Maximum Bucket Capacity6.10 yd³

Engine

Engine specifications
Engine ModelCat C15 ACERT
Displacement928 in³
Power Measured @1,800 rpm
Net Power411.0 hp
AspirationTurbocharged
Stroke7 in
Bore5 in
Net Power - ISO 9249404.0 hp
Net Power - SAE J1349404.0 hp
Net Power - EEC 80/1269404.0 hp

Weights

Weights specifications
Operating Weight145,430 lb
Operating Weight - Standard Undercarriage145,430 lb
Operating Weight - Long Undercarriage145,430 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,060 psi
Maximum Pressure - Travel5,080 psi
Boom Cylinder - Bore8 in
Boom Cylinder - Stroke71 in
Stick Cylinder - Bore8 in
Stick Cylinder - Stroke83 in
Maximum Pressure - Equipment - Normal4,640 psi
Swing System - Maximum Flow94.0 gal/min

Dimensions

Dimensions specifications
Ground Clearance33 in
Height - Top of Cab139 in
Length of Track on Ground186 in
Tail Swing Radius159 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance61 in
Shipping Height196 in

Undercarriage

Undercarriage specifications
Ground Pressure14 psi
Track Gauge108 in
Number of Track Rollers per Side8
Max Travel Speed2.6 mph
Shoe Size26 in
Number of Shoes per Side47
Number of Carrier Rollers per Side3
Drawbar Pull103,767 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth372 in
Max Reach Along Ground553 in
Max Loading Height362 in
Max Vertical Wall Digging Depth299 in
Max Cutting Height517 in
Shipping Length of Unit520 in
Shipping Height of Unit196 in

Bucket

Bucket specifications
Reference Bucket Capacity3.70 yd³
Maximum Bucket Capacity6.00 yd³

Service Refill Capacities

Service Refill Capacities specifications
Cooling System25.0 gal
Hydraulic System - Including Tank177.0 gal
Final Drive - Each4.0 gal
Engine Oil14.3 gal
Hydraulic Tank82.0 gal
Fuel Tank Capacity211.0 gal
Swing Drive - Each3.2 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth353 in
Max Vertical Wall Digging Depth271 in
Max Cutting Height502 in
Max Loading Height348 in
Max Reach Along Ground531 in
Shipping Length of Unit522 in
Shipping Height of Unit182 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth330 in
Max Cutting Height492 in
Max Loading Height340 in
Max Vertical Wall Digging Depth252 in
Max Reach Along Ground511 in
Shipping Length of Unit526 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth300 in
Max Cutting Height490 in
Max Reach Along Ground486 in
Max Loading Height332 in
Max Vertical Wall Dig Depth245 in
Shipping Length of Unit526 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88 ISO 10262

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth289 in
Max Reach Along Ground451 in
Max Cutting Height469 in
Max Loading Height274 in
Max Vertical Wall Dig Depth175 in
Shipping Height of Unit180 in
Shipping Length of Unit480 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth272 in
Max Reach Along Ground435 in
Max Cutting Height424 in
Max Loading Height268 in
Max Vertical Wall Dig Depth161 in
Shipping Length of Unit480 in
Shipping Height of Unit181 in

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage47
Number of Track Rollers - Each Side - Long Undercarriage8
Standard with Long Undercarriage36 in
Optional for Long Undercarriage (1)30 in
