Caterpillar

390D L

Excavator

Max Digging Depth
420 in
Net Power
523.0 hp
All excavators

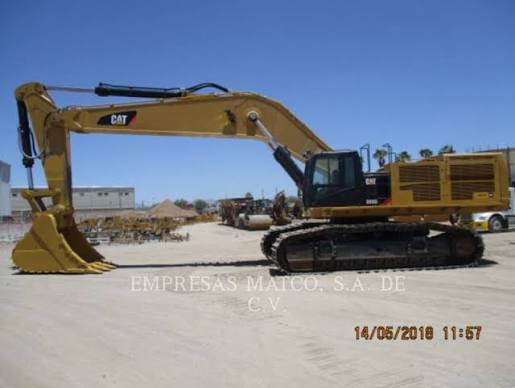

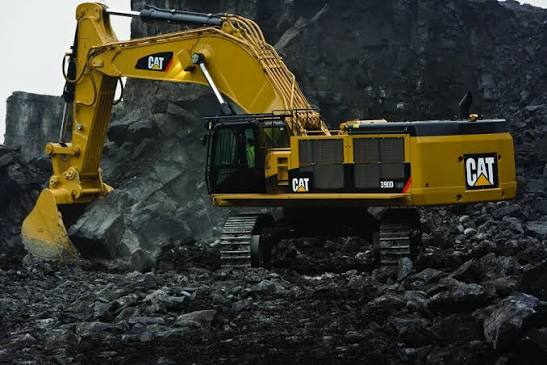

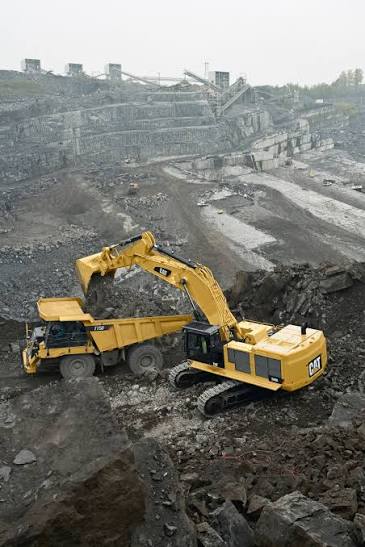

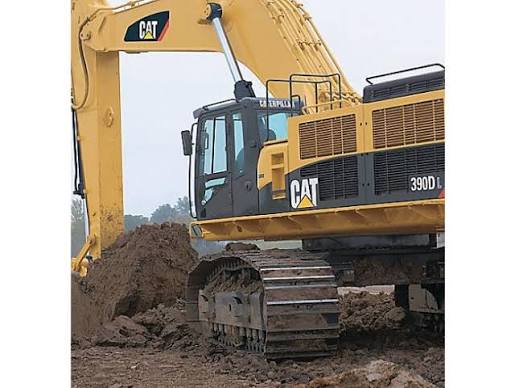

Caterpillar 390D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity327.6 gal
Hydraulic Pump Flow Capacity258.9 gal/min
Hydraulic System Fluid Capacity262.9 gal
Engine Oil Capacity17.2 gal
Cooling System Fluid Capacity26.7 gal
Swing Drive Fluid Capacity5.1 gal

Engine

Engine specifications
Engine ModelCat C18 ACERT (ATAAC)
Displacement1,105 in³
Net Power523.0 hp
Engine MakeCaterpillar
Stroke7 in
Bore6 in
Net Power - ISO 9249523.0 hp
Net Power - SAE J1349523.0 hp
Net Power - EEC 80/1269523.0 hp

Weights

Weights specifications
Operating Weight190,016 lb
Operating Weight - Long Undercarriage190,016 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing3,771 psi
Maximum Pressure - Travel5,076 psi
Boom Cylinder - Bore8 in
Boom Cylinder - Stroke78 in
Stick Cylinder - Bore9 in
Stick Cylinder - Stroke89 in
Maximum Pressure - Equipment - Normal5,076 psi
Swing System - Maximum Flow121.5 gal/min

Dimensions

Dimensions specifications
Digging Depth679 – 466 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side9
Number of Shoes per Side51
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth420 in
Max Reach Along Ground640 in

Drive System

Drive System specifications
Maximum Drawbar Pull132,637 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System26.7 gal
Hydraulic System - Including Tank262.9 gal
Final Drive - Each5.6 gal
Engine Oil17.2 gal
Fuel Tank Capacity327.6 gal
Swing Drive - Each5.1 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed6 rpm

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88/ISO 10262

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage51
Number of Track Rollers - Each Side - Long Undercarriage9
