Caterpillar

501HD

Processor

Operating Weight
40,000 lb
Gross Power
161.0 hp
All processors/harvesters

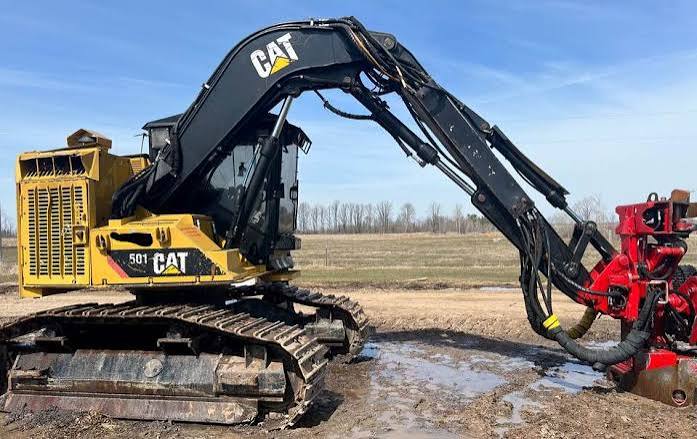

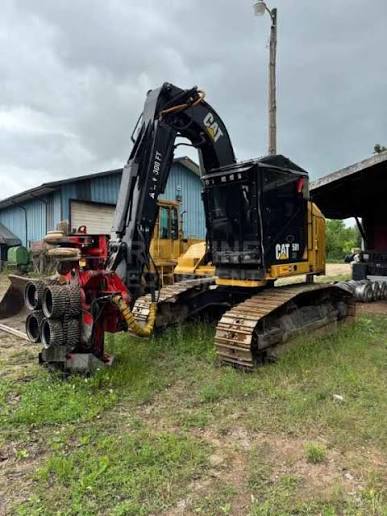

Caterpillar 501HD Processor
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

14 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,000 lb
Fuel Capacity100.0 gal
Operating Voltage12 V
Alternator Supplied Amperage160 A
Hydraulic System Fluid Capacity60.0 gal

Engine

Engine specifications
Engine Model3056E - DITAAC
Gross Power161.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab135 in
Overall Width113 in

Undercarriage

Undercarriage specifications
Track Gauge89 in
Shoe Size24 in
Ground Clearance26 in
Track Length156 in

Boom

Boom specifications
Max Reach w/ Head252 in
